NSN 4820-00-064-7243
Part Details | PNEUMATIC TANK VALVE
4820-00-064-7243 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Alternate Parts: 1636532364, 1636-532364, 5323640000, L07471000K, L074H000K, 5323640000, 532364, L07471000K, 1636532364, 1636-532364, 4820-00-064-7243, 00-064-7243, 4820000647243, 000647243
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1963 | 00-064-7243 | 06509 ( VALVE, PNEUMATIC TANK ) |
REFERENCE DRAWINGS & PICTURES

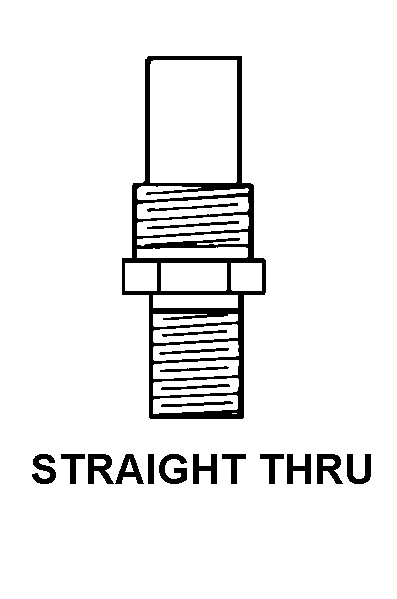

STRAIGHT THRU
GASKET SEAL COMPRESSION
GASKET SEAL COMPRESSION
GASKET SEAL COMPRESSION
GASKET SEAL COMPRESSION
Cross Reference | NSN 4820-00-064-7243
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1636-532364 | 92003 | PARKER HANNIFIN CORPORATIONDIV AEROSPACE GROUP HEADQUARTERS |
| 5323640000 | 64575 | PARKER HANNIFIN CORPORATIONDIV HYDRAULIC ACCUMULATOR DIVISION |
| L07471000K | 64575 | PARKER HANNIFIN CORPORATIONDIV HYDRAULIC ACCUMULATOR DIVISION |
| L074H000K | 64575 | PARKER HANNIFIN CORPORATIONDIV HYDRAULIC ACCUMULATOR DIVISION |
| 5323640000 | 84561 | PARKER-HANNIFIN CORPORATIONDBA CYLINDER DIV |
| 532364 | 84561 | PARKER-HANNIFIN CORPORATIONDBA CYLINDER DIV |
| L07471000K | 26337 | PARKER-HANNIFIN CORPORATIONDBA HYDRAULIC ACCUMULATOR |
| 1636-532364 | 45681 | PARKER-HANNIFIN CORPORATIONDIV CORPORATE HEADQUARTERS |
Technical Data | NSN 4820-00-064-7243
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT THRU |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| OUTSIDE SURFACE TREATMENT | PASSIVATED |
| SEAT MATERIAL | BRASS OR BRONZE |
| FLOW CONTROL DEVICE | W ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | 0 GASKET SEAL COMPRESSION |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES NOMINAL |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | 0 GASKET SEAL COMPRESSION |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| MEDIA FOR WHICH DESIGNED | AIR |
| CORE ENVIRONMENTAL PROTECTION | CORROSION |
| COMMERCIAL CORE LENGTH DESIGNATOR | STANDARD |
| COMMERCIAL SPRING TENSION RATING | NOT RATED |
| FURNISHED ITEMS | CAP |
