NSN 4820-00-066-5740
Part Details | VACUUM BREAKING VALVE
4820-00-066-5740 An item designed to automatically relieve vacuum, by the intake of air, when the internal pressure falls below atmospheric pressure. See also VALVE, VACUUM REGULATING.
Alternate Parts: CS4820SR0709, CS4820-SR-0709, D147625, 4820-00-066-5740, 00-066-5740, 4820000665740, 000665740
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUN 29, 1967 | 00-066-5740 | 08101 ( VALVE, VACUUM BREAKING ) |
REFERENCE DRAWINGS & PICTURES
PLAIN

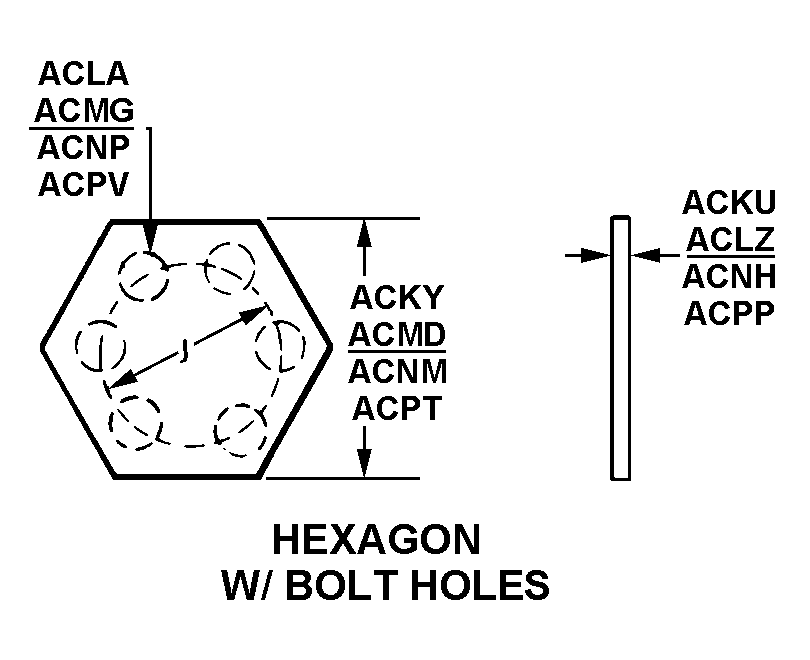

HEXAGON W/ BOLT HOLES
PLAIN
HEXAGON W/ BOLT HOLES
PLAIN
HEXAGON W/ BOLT HOLES
PLAIN
HEXAGON W/ BOLT HOLES
Cross Reference | NSN 4820-00-066-5740
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CS4820-SR-0709 | 16236 | DLA LAND AND MARITIMEDBA ENGINEERING AND TECHNICAL |
| D147625 | 13344 | NEWTERRA INC. |
Technical Data | NSN 4820-00-066-5740
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| SEAT MATERIAL | BRASS |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | PLAIN FACE FLANGE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END FLANGE SHAPE STYLE | HEXAGON W/ BOLT HOLES |
| FIRST END FLANGE OUTSIDE DIAMETER | 5.000 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH |
