NSN 4820-00-075-5904
Part Details | POPPET DRAIN COCK
4820-00-075-5904 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.
Alternate Parts: 20D100, 4820-00-075-5904, 00-075-5904, 4820000755904, 000755904
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1963 | 00-075-5904 | 16989 ( COCK, POPPET DRAIN ) |
REFERENCE DRAWINGS & PICTURES

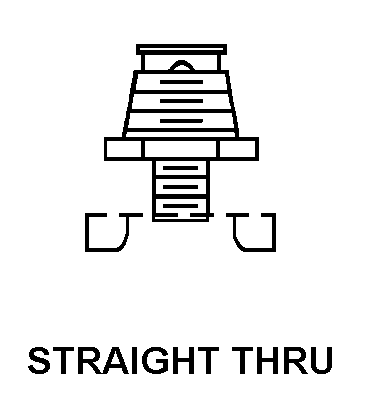

STRAIGHT THRU
Cross Reference | NSN 4820-00-075-5904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20D100 | 82829 | ALLEN AIRCRAFT PRODUCTS INC |
Technical Data | NSN 4820-00-075-5904
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 0 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | MANUAL |
