NSN 4930-01-036-0768
Part Details | SELF-FEEDING OILER
4930-01-036-0768 An oil reservoir having a needle valve, wick or other restriction in the discharge passage which delivers lube oil by gravity or capillary action to one or more points of a machine. See also OILER, AIRLINE; INDICATOR, SIGHT, LIQUID; AND CUP, OIL, LUBRICATING.
Alternate Parts: 792615C2, HDL2, SL2, SHIPALTFF1052363, SHIPALTFF1052-363, SHIPALTFF105236SHIPALTFF105236, SHIPALTFF1052-36SHIPALTFF1052-36, 792615C2, 25014710, 20QE2338M, SL2, SL-2, 4930-01-036-0768, 01-036-0768, 4930010360768, 010360768
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | FEB 22, 1977 | 01-036-0768 | 03180 ( OILER, SELF-FEEDING ) |
REFERENCE DRAWINGS & PICTURES

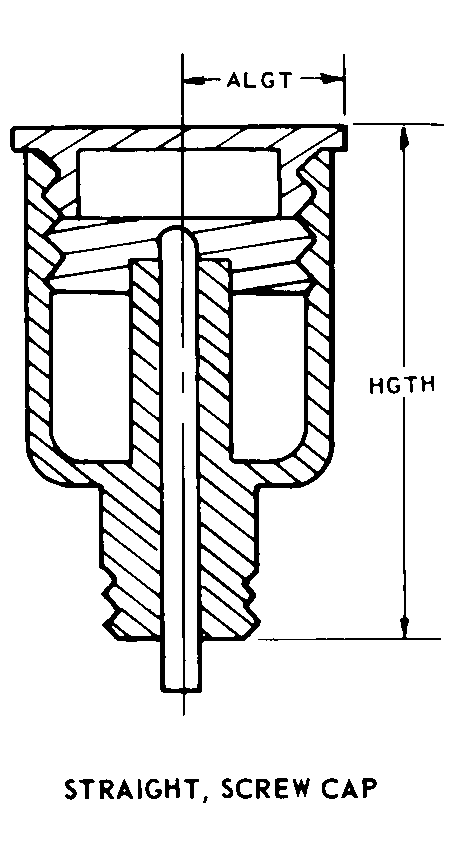

STRAIGHT, SCREW CAP
Cross Reference | NSN 4930-01-036-0768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 792615C2 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| HDL2 | 30760 | INGERSOLL RAND CO |
| SL2 | 30760 | INGERSOLL RAND CO |
| SHIPALTFF1052-363 | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
| SHIPALTFF1052-36SHIPALTFF1052-36 | 03950 | NAVAL INVENTORY CONTROL POINTMECHANICSBURG |
| 792615C2 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
| 25014710 | Z4117 | VOLVO GROUP GOVERNMENT SALES OCEANIA |
| 20QE2338M | Z4117 | VOLVO GROUP GOVERNMENT SALES OCEANIA |
| SL-2 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 4930-01-036-0768
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT, SCREW CAP |
| ASSEMBLY CLEARANCE RADIUS | 0.633 INCHES NOMINAL |
| HEIGHT | 2.275 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| SPECIAL FEATURES | WITH WICK |
