NSN 5110-01-066-6445
Part Details | CRAFTSMAN'S KNIFE
5110-01-066-6445 A hand tool used for cutting upholstery, rubber, leather and other non-metallic materials with or without detachable blades. It may be furnished with or without extra cutting blades.
Alternate Parts: GGGK481, GGG-K-481, GGGK481 TY7, GGG-K-481 TY7, 15703, 1570-3, 15603, 1560-3, 5110-01-066-6445, 01-066-6445, 5110010666445, 010666445
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | OCT 15, 1978 | 01-066-6445 | 04691 ( KNIFE, CRAFTSMAN'S ) |

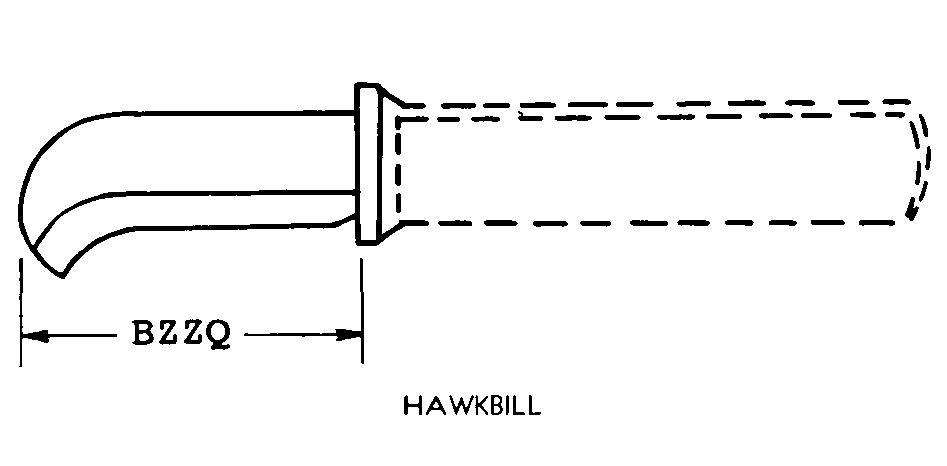

REFERENCE DRAWINGS & PICTURES
HAWKBILL
Cross Reference | NSN 5110-01-066-6445
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-K-481 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-K-481 TY7 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 1570-3 | 75347 | KLEIN TOOLS INC |
| 1560-3 | 75347 | KLEIN TOOLS INC |
Technical Data | NSN 5110-01-066-6445
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HAWKBILL |
| CUTTING BLADE LENGTH | 3.000 INCHES NOMINAL |
| SPECIAL FEATURES | LINEMAN'S SKINNING KNIFE |
| NONDEFINITIVE SPEC/STD DATA | 7 TYPE |
