NSN 5110-01-092-9789
Part Details | HAND FILE
5110-01-092-9789 Excludes RASP, HAND.
Alternate Parts: 06601, 06601, 5110-01-092-9789, 01-092-9789, 5110010929789, 010929789
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | APR 08, 1980 | 01-092-9789 | 01027 ( FILE, HAND ) |
REFERENCE DRAWINGS & PICTURES

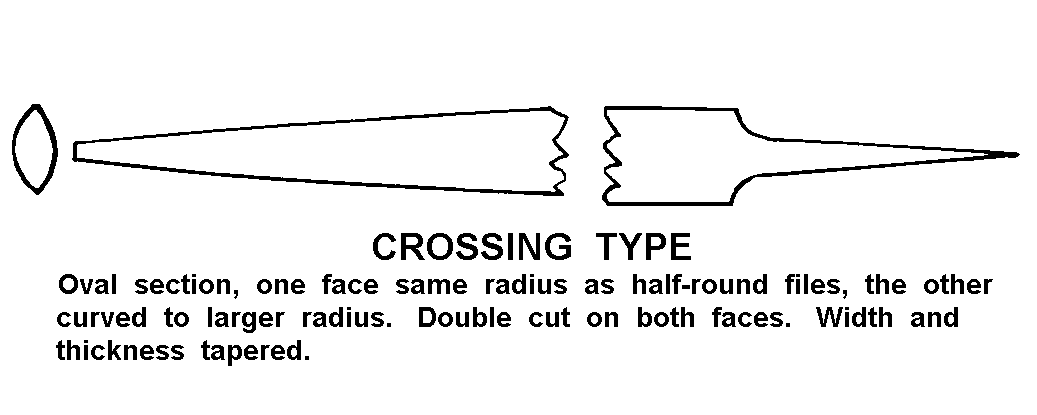

CROSSING TYPE
Cross Reference | NSN 5110-01-092-9789
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 06601 | 96508 | APEX TOOL GROUP |
| 06601 | 65LN0 | APEX TOOL GROUP, LLC |
Technical Data | NSN 5110-01-092-9789
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 0 CROSSING TYPE |
| PATTERN TYPE | AMERICAN |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| FACE CUT TYPE | SINGLE CUT AND DOUBLE CUT |
| SPECIAL FEATURES | ONE SAFE EDGE |
