NSN 5110-01-337-0552
Part Details | METAL CUTTING HAND SAW
5110-01-337-0552 A metal cutting handsaw with a closed grip handle fastened at the wide end of a straight back blade. The unset cutting teeth on the blade are designed for cutting metal and are milled straight across.
Alternate Parts: MF1237, 5110-01-337-0552, 01-337-0552, 5110013370552, 013370552
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | APR 09, 1991 | 01-337-0552 | 10883 ( SAW, HAND, METAL CUTTING ) |
REFERENCE DRAWINGS & PICTURES

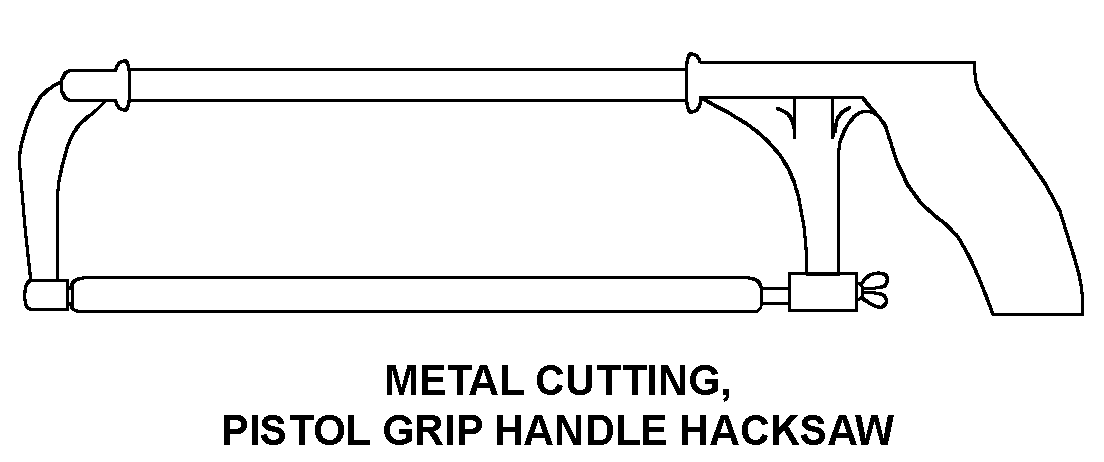

METAL CUTTING, PISTOL GRIP HANDLE HACKSAW
Cross Reference | NSN 5110-01-337-0552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MF1237 | 76028 | GORILLA GLUE COMPANY, THE |
Technical Data | NSN 5110-01-337-0552
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | METAL CUTTING, PISTOL GRIP HANDLE HACKSAW |
| BLADE LENGTH | 8.000 INCHES MINIMUM AND 12.000 INCHES MAXIMUM |
| THROAT DEPTH | 3.250 INCHES NOMINAL |
| FEATURES PROVIDED | ADJUSTABLE FRAME |
| SPECIAL FEATURES | REINFORCED BACK; ADJUSTS TO ACCEPT 8, 10 AND 12 IN. BLADES; 4 CUTTING POSITIONS |
