NSN 5110-01-395-5663
Part Details | FILE HANDLE
5110-01-395-5663 A tubular item for attachment to a FILE, HAND. The small end of the item shall be equipped with a metal ferrule, collet or the like to prevent it from splitting when the tang end of the file is inserted into the item. It shall be drilled axially to half its length with a hole to accept the tang end of the file.
Alternate Parts: WFH6, 5110-01-395-5663, 01-395-5663, 5110013955663, 013955663
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | AUG 31, 1994 | 01-395-5663 | 32213 ( HANDLE, FILE ) |

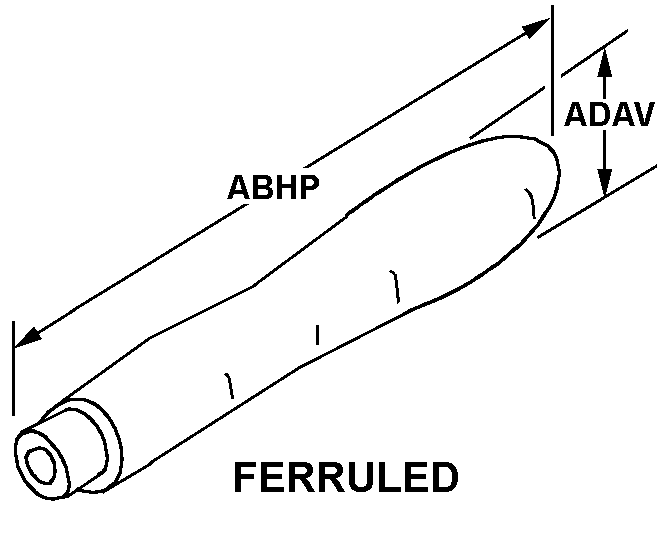

REFERENCE DRAWINGS & PICTURES
FERRULED
Cross Reference | NSN 5110-01-395-5663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WFH6 | 1DJ82 | MATCO TOOLS CORPORATIONDBA MATCO TOOLS |
Technical Data | NSN 5110-01-395-5663
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FERRULED |
| SPECIAL FEATURES | TWIST-ON TYPE; FOR 10 IN. FILES; HARDENED STEEL INSERT IN HANDLE CUTS THREADS ON FILE TANG FOR RETENTION |
