Part Details | SPANNER WRENCH
5120-00-070-7809 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 5120000707809, 5120000707809, 10935288, 10935288, 5120-00-070-7809, 00-070-7809, 5120000707809, 000707809
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-070-7809 | 03476 ( WRENCH, SPANNER ) |

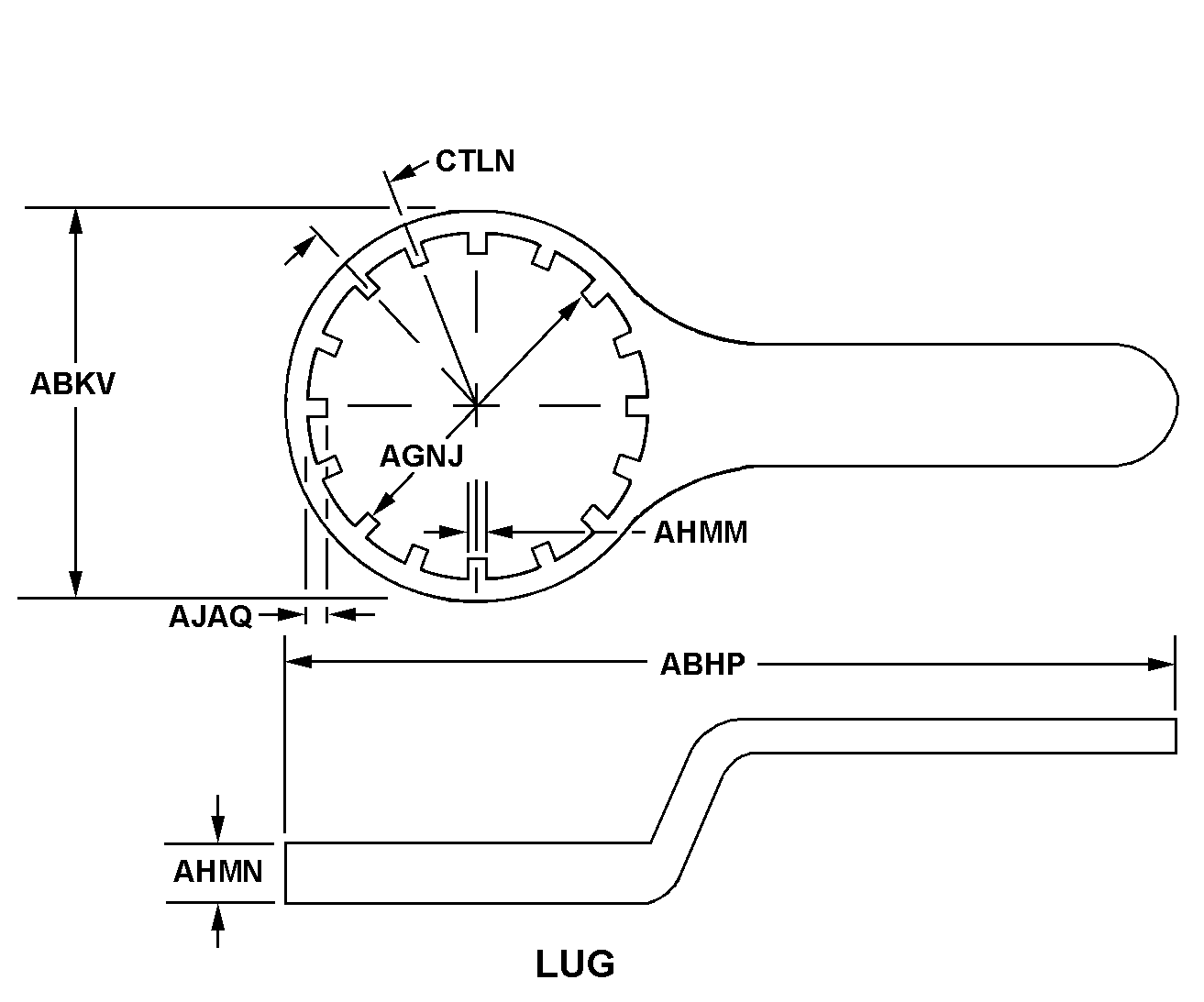

REFERENCE DRAWINGS & PICTURES
LUG
Cross Reference | NSN 5120-00-070-7809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5120000707809 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 5120000707809 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10935288 | 9H953 | SOUTHEASTERN EQUIPMENT COMPANY, INC.DBA SECO |
| 10935288 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5120-00-070-7809
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 6.000 INCHES NOMINAL |
| OPENING DIAMETER | 4.560 INCHES NOMINAL |
| LUG WIDTH | 2.000 INCHES NOMINAL |
| LUG THICKNESS | 0.250 INCHES NOMINAL |
| LUG LENGTH | 1.440 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 91.0 DEGREES NOMINAL |
| END ITEM IDENTIFICATION | 2320-00-077-1616 TRUCK CGO 5/2T M35A2 |
