NSN 5120-00-072-1544
Part Details | TORQUE WRENCH ADAPTER
5120-00-072-1544 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.
Alternate Parts: 38202681, 3820268-1, 38202681, 3820268-1, 38202681, 3820268-1, 5120-00-072-1544, 00-072-1544, 5120000721544, 000721544
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-072-1544 | 60023 ( ADAPTER, TORQUE WRENCH ) |
REFERENCE DRAWINGS & PICTURES

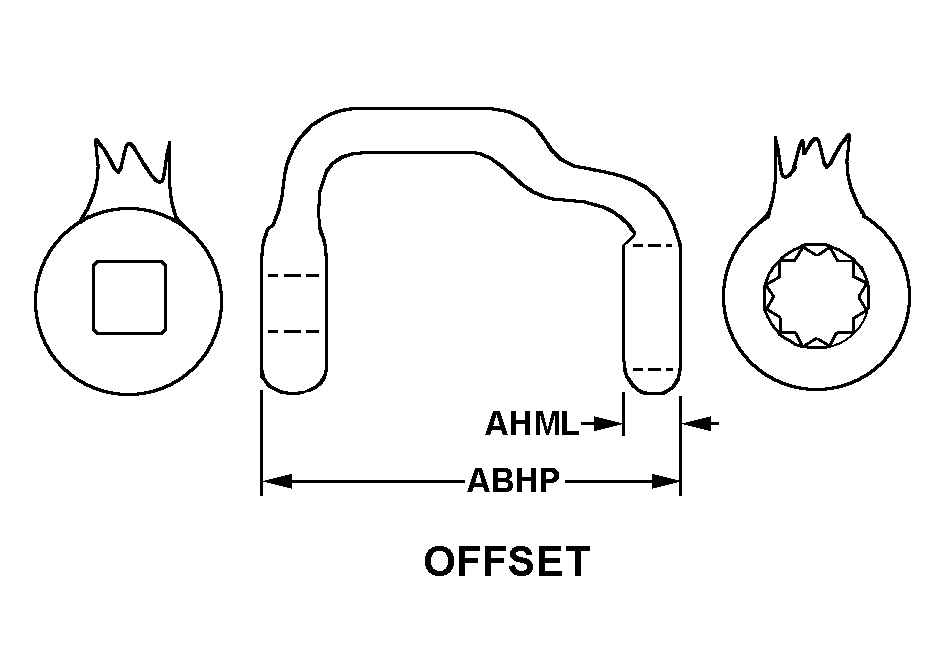

OFFSET
Cross Reference | NSN 5120-00-072-1544
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3820268-1 | 88277 | BOEING COMPANY, THEDBA BOEING |
| 3820268-1 | 18355 | BOEING COMPANY, THEDBA BOEING |
| 3820268-1 | 54637 | OPTICAL SPECIALTIES |
Technical Data | NSN 5120-00-072-1544
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET |
| OVERALL LENGTH | 8.500 INCHES NOMINAL |
| HEAD THICKNESS | 0.438 INCHES NOMINAL |
| TORQUE CAPACITY | 200.0 FOOT-POUNDS NOMINAL |
| FUNCTIONAL DESCRIPTION | USED TO TORQUE EB-108 NUTS ON M L G BEAMS 5443262 AND 5820045 |
