NSN 5120-00-072-8354
Part Details | SPANNER WRENCH
5120-00-072-8354 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 114E58182, 114E5818-2, 114E58182, 114E5818-2, 5120-00-072-8354, 00-072-8354, 5120000728354, 000728354
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-072-8354 | 03476 ( WRENCH, SPANNER ) |

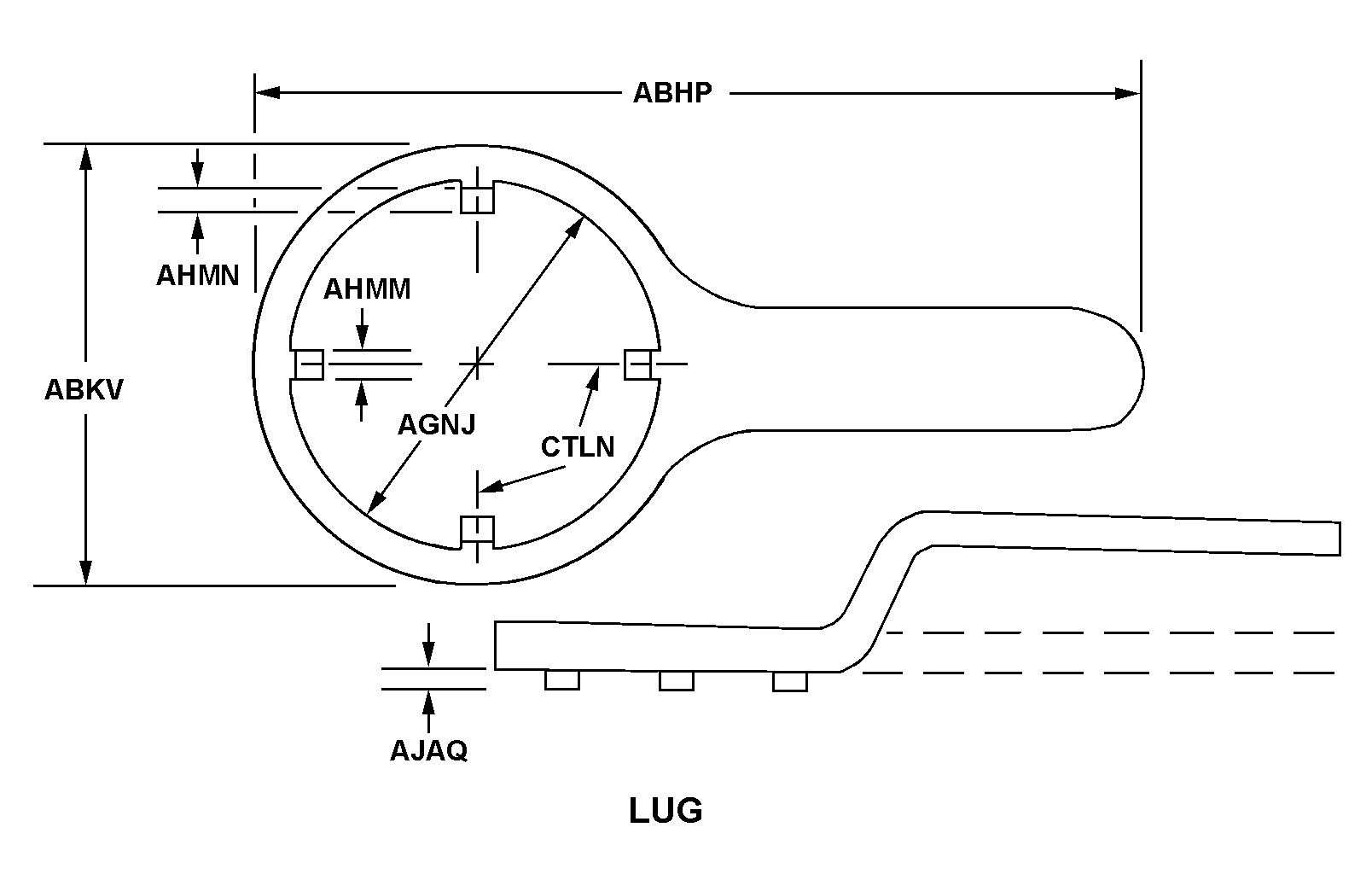

REFERENCE DRAWINGS & PICTURES
LUG
Cross Reference | NSN 5120-00-072-8354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114E5818-2 | 81205 | THE BOEING COMPANYDBA BOEING |
| 114E5818-2 | 77272 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5120-00-072-8354
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 17.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 11.000 INCHES NOMINAL |
| OPENING DIAMETER | 6.505 INCHES MINIMUM AND 6.515 INCHES MAXIMUM |
| LUG WIDTH | 0.999 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| LUG THICKNESS | 0.678 INCHES MINIMUM AND 0.688 INCHES MAXIMUM |
| LUG LENGTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| ANGLE BETWEEN LUGS | 90.0 DEGREES NOMINAL |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
| SPECIAL FEATURES | IST MATERIAL FOR WRENCHING BODY; 2ND MATERIAL FOR WRENCHING LUGS |
