NSN 5120-00-075-1036
Part Details | SPANNER WRENCH
5120-00-075-1036 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: A02E58772, A02E5877-2, A02E58772, A02E5877-2, 5120-00-075-1036, 00-075-1036, 5120000751036, 000751036
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-075-1036 | 03476 ( WRENCH, SPANNER ) |

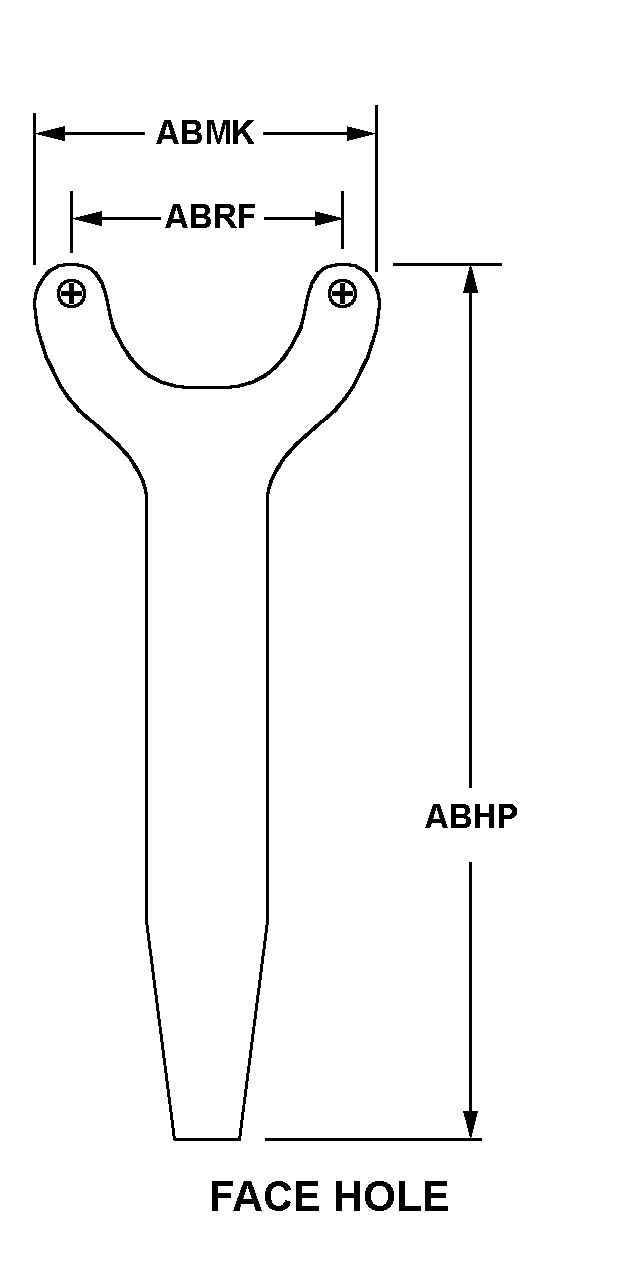

REFERENCE DRAWINGS & PICTURES
FACE HOLE
Cross Reference | NSN 5120-00-075-1036
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A02E5877-2 | 81205 | THE BOEING COMPANYDBA BOEING |
| A02E5877-2 | 77272 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5120-00-075-1036
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE HOLE |
| OVERALL LENGTH | 17.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 2.816 INCHES NOMINAL |
| SPECIAL FEATURES | IDENTIFICATION TAG ATTACHED TO HANDLE WITH NYLON CABLE; HOLE DIA 0.690 IN. |
