NSN 5120-00-076-1441
Part Details | OPEN END WRENCH
5120-00-076-1441 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: 1320, 52Z68, 52Z68, 52Z68, 5120-00-076-1441, 00-076-1441, 5120000761441, 000761441
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-076-1441 | 17182 ( WRENCH, OPEN END ) |

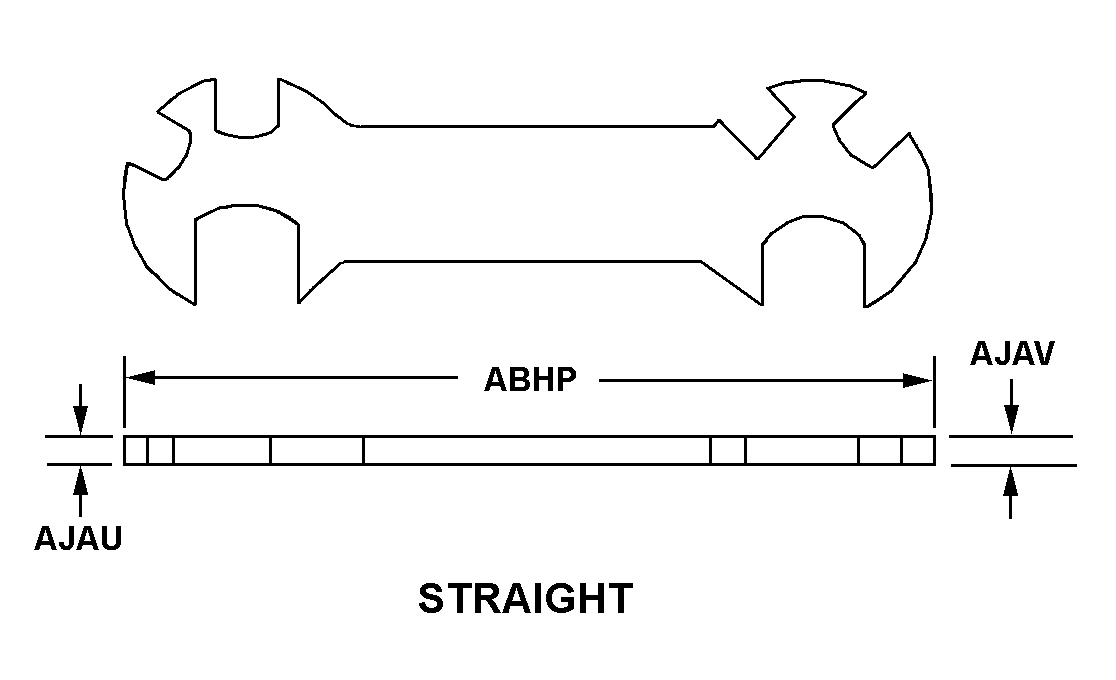

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 5120-00-076-1441
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1320 | 30282 | DRAF INDUSTRIES, INC |
| 52Z68 | 96073 | ESAB GROUP, INC., THEDBA ESAB WELDING AND CUTTING |
| 52Z68 | 30367 | L-TEC WELDING AND CUTTING SYSTEMS |
| 52Z68 | 36346 | UNION CARBIDE CORPSUB OF DOW CO THE |
Technical Data | NSN 5120-00-076-1441
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| OVERALL LENGTH | 8.000 INCHES NOMINAL |
| LARGE END HEAD THICKNESS | 0.250 INCHES NOMINAL |
| SMALL END HEAD THICKNESS | 0.250 INCHES NOMINAL |
