NSN 5120-00-076-8630
Part Details | FURNACE AND FLUE WIRE BRUSH
5120-00-076-8630 An item having a wire fill section of varying cross-sectional shapes securely twisted in a stem wire which is extended to form a handle, or it has a means for attaching a handle.
Alternate Parts: 590, 5120-00-076-8630, 00-076-8630, 5120000768630, 000768630
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-076-8630 | 04806 ( BRUSH, WIRE, FURNACE AND FLUE ) |
REFERENCE DRAWINGS & PICTURES

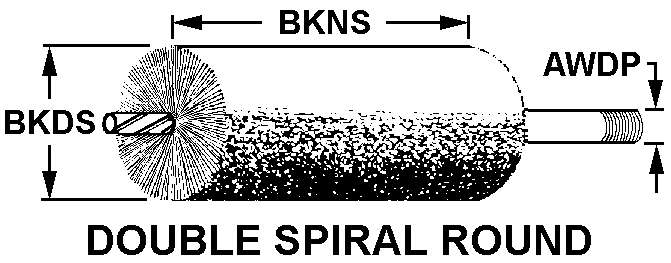

DOUBLE SPIRAL ROUND
Cross Reference | NSN 5120-00-076-8630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 590 | 99119 | PILLEY INDUSTRIES INC |
Technical Data | NSN 5120-00-076-8630
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE SPIRAL ROUND |
| THREAD DIAMETER | 0.250 INCHES NOMINAL |
| BRUSH PART DIAMETER | 2.000 INCHES NOMINAL |
| BRUSH LENGTH | 4.500 INCHES NOMINAL |
| WIRE SHAPE | ROUND |
| WIRE CROSS-SECTIONAL SIZE | 0.025 IN. |
| FLEXIBLE HANDLE | NOT INCLUDED |
| CONNECTOR END DESIGN | MALE |
