NSN 5120-00-078-2411
Part Details | BOX WRENCH
5120-00-078-2411 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: 647035850041, 6470-35850-041, 5120-00-078-2411, 00-078-2411, 5120000782411, 000782411
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | NOV 24, 1971 | 00-078-2411 | 03555 ( WRENCH, BOX ) |
REFERENCE DRAWINGS & PICTURES

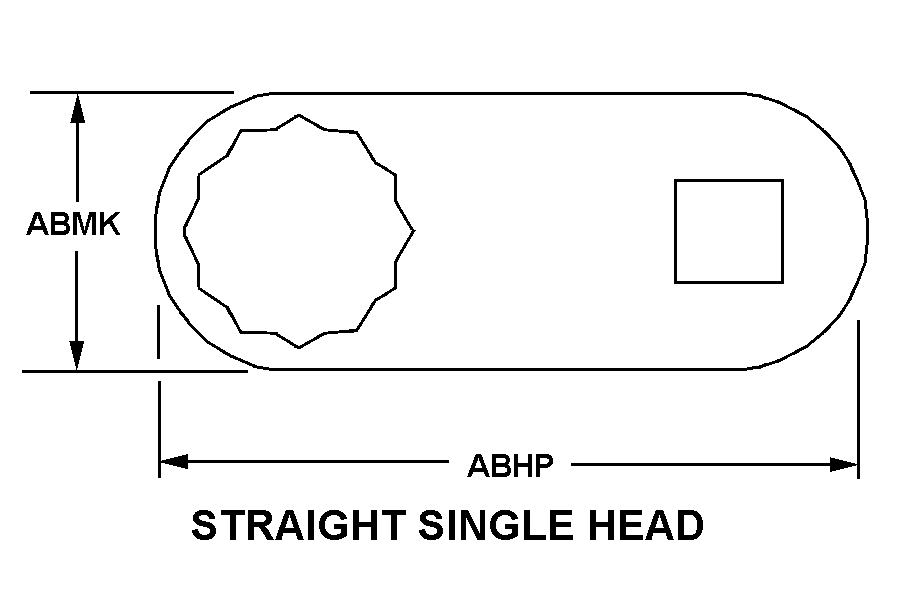

STRAIGHT SINGLE HEAD
Cross Reference | NSN 5120-00-078-2411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6470-35850-041 | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
Technical Data | NSN 5120-00-078-2411
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SINGLE HEAD |
| OVERALL LENGTH | 6.090 INCHES MINIMUM AND 6.125 INCHES MAXIMUM |
| OVERALL WIDTH | 0.530 INCHES MINIMUM AND 0.590 INCHES MAXIMUM |
| SPECIAL FEATURES | BOSS WELDED TO DRIVE END,MATL STEEL,MIL-S-6758 COMPOSITION 4130 CONDITION C,0.380 IN. NOM THK |
