NSN 5120-00-078-4122
Part Details | TORQUE WRENCH ADAPTER
5120-00-078-4122 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.
Alternate Parts: 21C2640P010, 21C2640P010, 5120-00-078-4122, 00-078-4122, 5120000784122, 000784122
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-078-4122 | 60023 ( ADAPTER, TORQUE WRENCH ) |

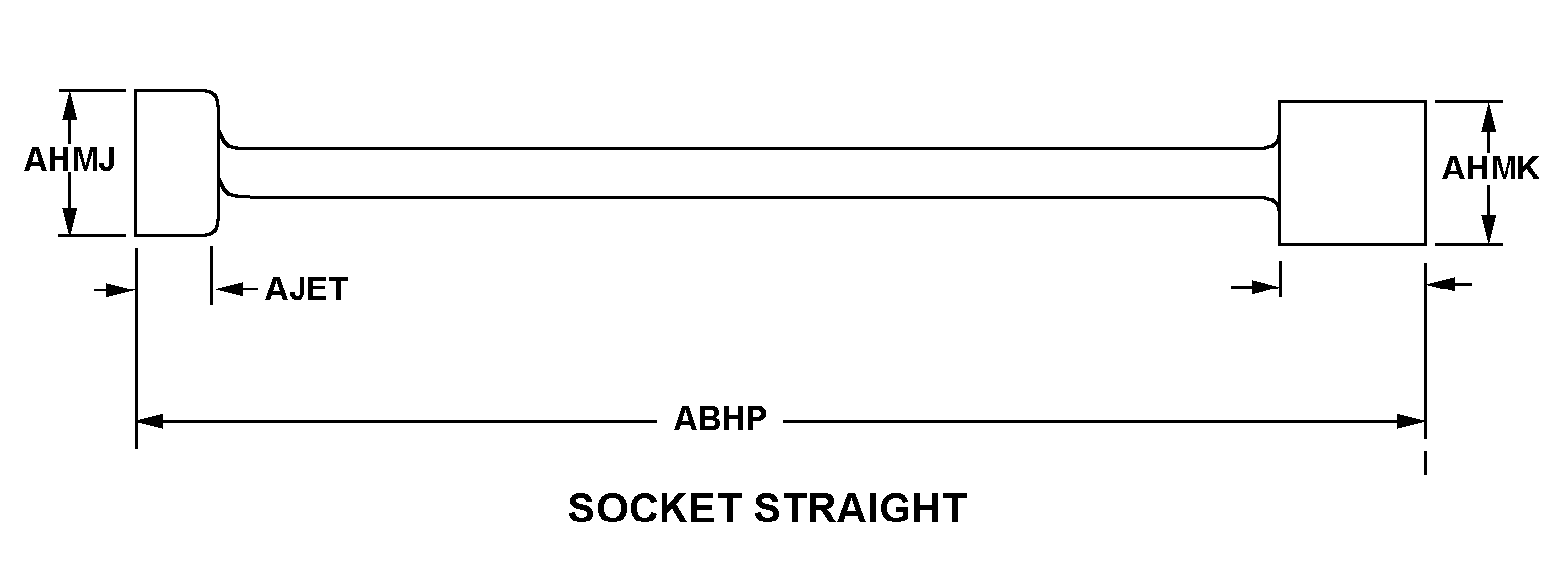

REFERENCE DRAWINGS & PICTURES
SOCKET STRAIGHT
Cross Reference | NSN 5120-00-078-4122
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21C2640P010 | 24446 | GENERAL ELECTRIC COMPANY |
| 21C2640P010 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
Technical Data | NSN 5120-00-078-4122
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOCKET STRAIGHT |
| OVERALL LENGTH | 3.940 INCHES MINIMUM AND 4.060 INCHES MAXIMUM |
| WRENCHING END OUTSIDE DIAMETER | 0.344 INCHES MAXIMUM |
| DRIVE END OUTSIDE DIAMETER | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| WRENCHING END HEAD THICKNESS | 0.325 INCHES MINIMUM AND 0.355 INCHES MAXIMUM |
| DRIVE END HEAD THICKNESS | 0.440 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| SPECIAL FEATURES | TEST LOAD 48 IN-LB MIN |
