NSN 5120-00-089-9624
Part Details | SOCKET WRENCH CROWFOOT ATTACHMENT
5120-00-089-9624 A wrench component which may contain notches within an open end, box, open wall box, 2 or 3 lug open end wrench opening having a square, internal, fixed, eccentric drive parallel to the wrench opening, designed to receive the external drive end of a HANDLE, SOCKET WRENCH. Items having an open end type wrench opening may have a second drive opening at right angles to the wrench opening. See also SOCKET, CROWFOOT WRENCH HEAD and HEAD, CROWFOOT SOCKET WRENCH.
Alternate Parts: 4916, 4916, J4916, 4916, 1016, 5120-00-089-9624, 00-089-9624, 5120000899624, 000899624
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | AUG 09, 1967 | 00-089-9624 | 17106 ( CROWFOOT ATTACHMENT, SOCKET WRENCH ) |

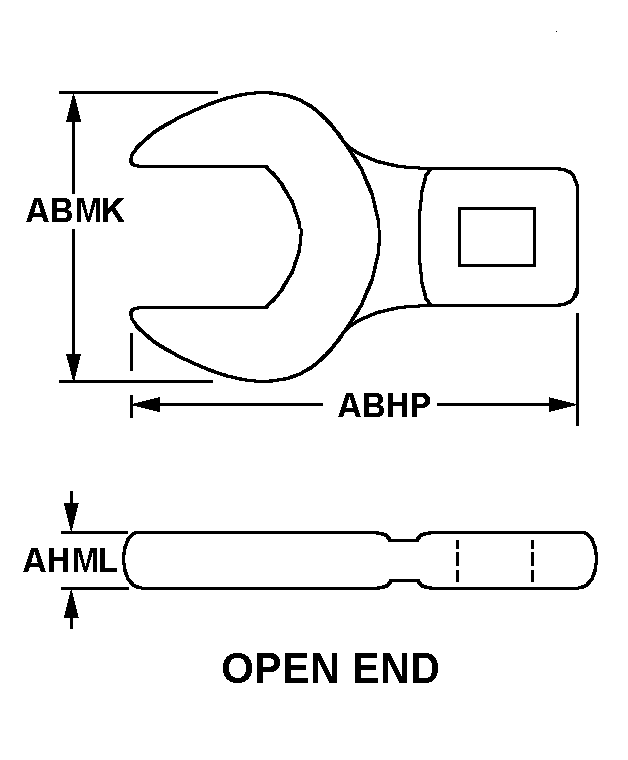

REFERENCE DRAWINGS & PICTURES
OPEN END
Cross Reference | NSN 5120-00-089-9624
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4916 | 47805 | INGERSOLL-RAND COPROTO TOOL DIV |
| 4916 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| J4916 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| 4916 | 93389 | STANLEY-PROTO INDUSTRIAL WORKSDIV OF THE STANLEY WORKS |
| 1016 | 79808 | WRIGHT TOOL CO |
Technical Data | NSN 5120-00-089-9624
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN END |
| OVERALL LENGTH | 1.406 INCHES NOMINAL |
| OVERALL WIDTH | 1.062 INCHES NOMINAL |
| HEAD THICKNESS | 0.203 INCHES NOMINAL |
