NSN 5120-00-092-9075
Part Details | SPANNER WRENCH
5120-00-092-9075 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 8708650, 5120-00-092-9075, 00-092-9075, 5120000929075, 000929075
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-092-9075 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

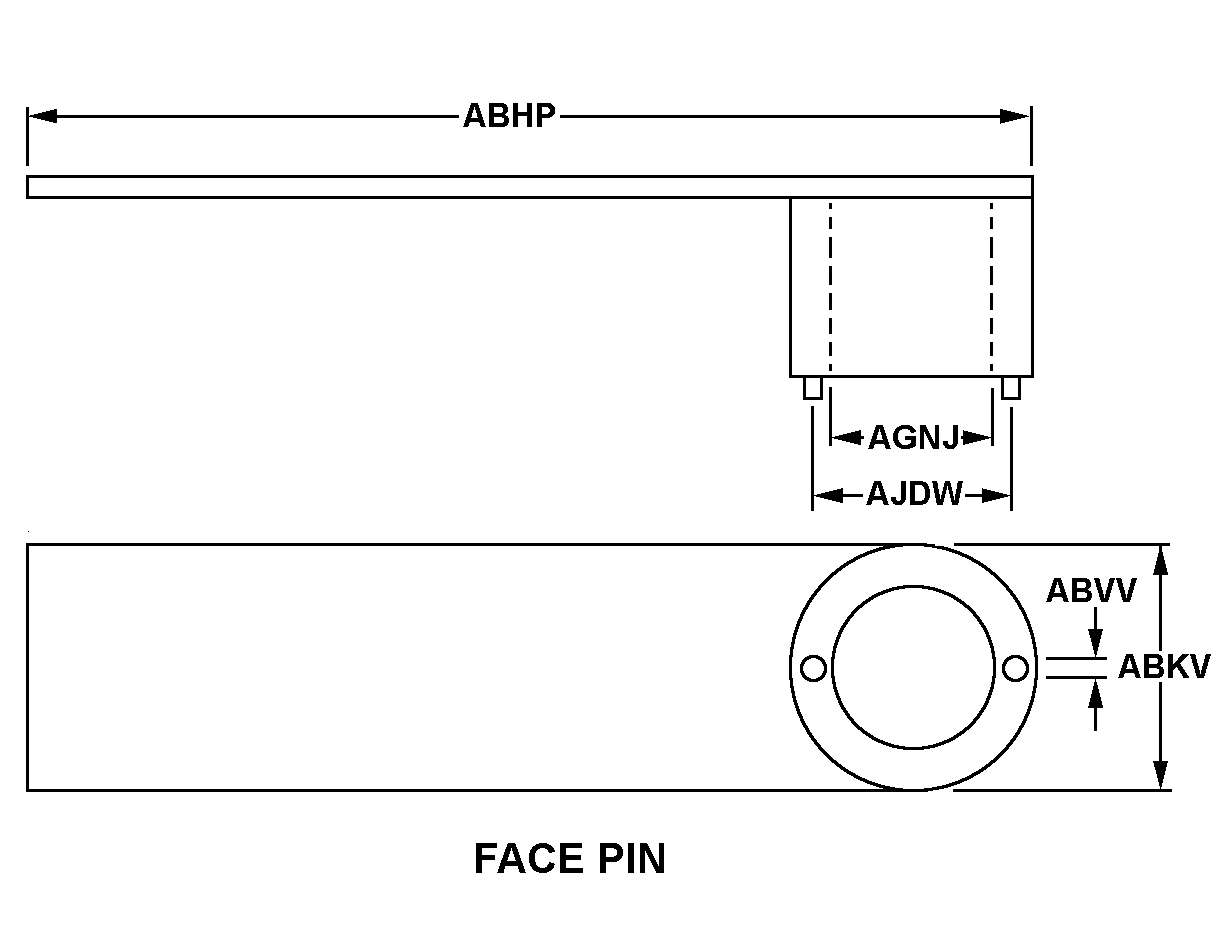

FACE PIN
Cross Reference | NSN 5120-00-092-9075
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8708650 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5120-00-092-9075
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE PIN |
| OVERALL LENGTH | 7.375 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| OPENING DIAMETER | 0.885 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 0.511 INCHES NOMINAL |
| END ITEM IDENTIFICATION | 2350-00-796-8000 GUN SP M42 |
