NSN 5120-00-094-1296
Part Details | SPANNER WRENCH
5120-00-094-1296 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: K23402, K23402, 5120-00-094-1296, 00-094-1296, 5120000941296, 000941296
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-094-1296 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

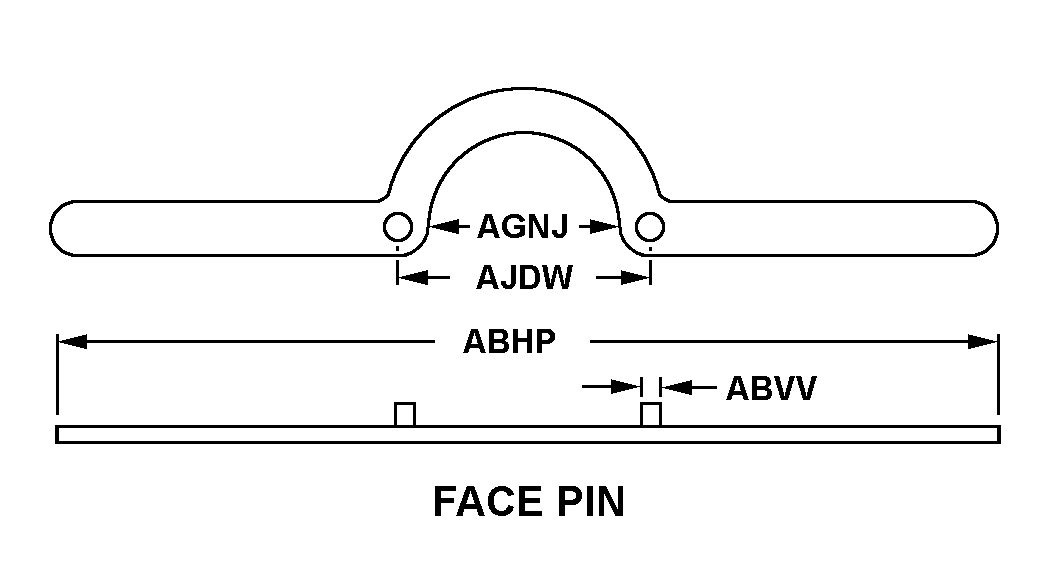

FACE PIN
Cross Reference | NSN 5120-00-094-1296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K23402 | 88277 | BOEING COMPANY, THEDBA BOEING |
| K23402 | 18355 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5120-00-094-1296
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE PIN |
| OVERALL LENGTH | 23.562 INCHES NOMINAL |
| PIN DIAMETER | 0.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN PINS | 10.800 INCHES NOMINAL |
