NSN 5120-00-094-1315
Part Details | FACE SPANNER WRENCH SOCKET
5120-00-094-1315 An item designed to be driven by an external or internal drive. It has a face type spanner end.
Alternate Parts: K25801, K25801, 5120-00-094-1315, 00-094-1315, 5120000941315, 000941315
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-094-1315 | 03543 ( SOCKET, WRENCH, FACE SPANNER ) |

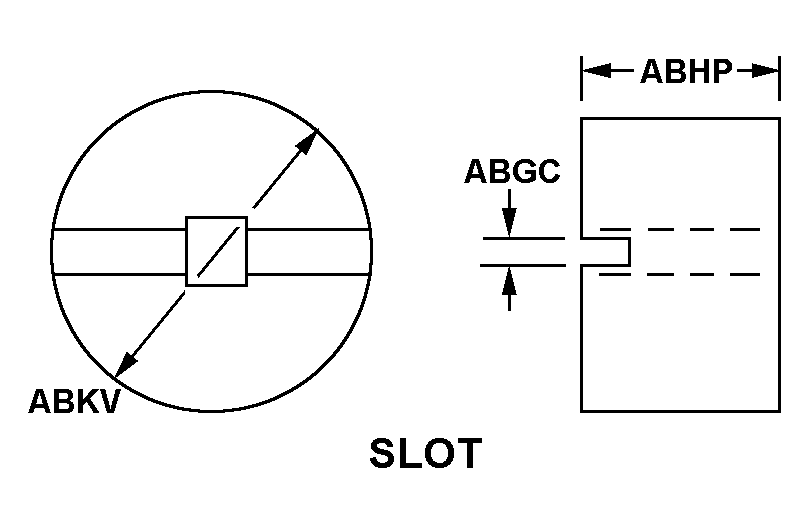

REFERENCE DRAWINGS & PICTURES
SLOT
Cross Reference | NSN 5120-00-094-1315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K25801 | 88277 | BOEING COMPANY, THEDBA BOEING |
| K25801 | 18355 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 5120-00-094-1315
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLOT |
| SLOT WIDTH | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |
| FUNCTIONAL DESCRIPTION | USED ON DC-4 NOSE WHL RETRACTING LINK ASSY |
