NSN 5120-00-094-4915
Part Details | SOCKET WRENCH
5120-00-094-4915 A wrench consisting of one or more sockets, integral with shank(s) or body. It may not be furnished with a handle when the handle is removable or when it is the "double end socket" and "single socket bar" types, each designed for use with the other or similar items. Excludes SOCKET, SOCKET WRENCH.
Alternate Parts: 315127, 5120-00-094-4915, 00-094-4915, 5120000944915, 000944915
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-094-4915 | 03520 ( WRENCH, SOCKET ) |
REFERENCE DRAWINGS & PICTURES

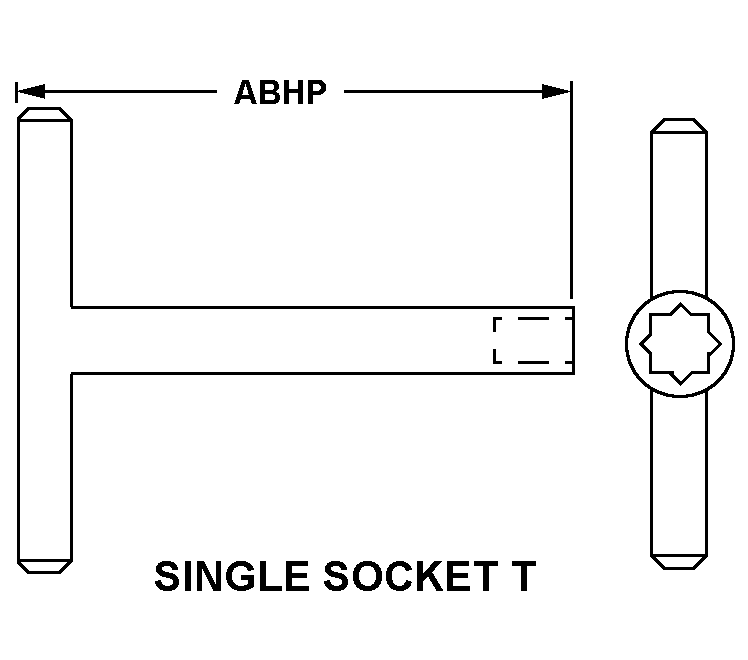

SINGLE SOCKET T
Cross Reference | NSN 5120-00-094-4915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 315127 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5120-00-094-4915
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE SOCKET T |
| OVERALL LENGTH | 39.688 INCHES NOMINAL |
| FUNCTIONAL DESCRIPTION | USED ON NLG ORIFICE PLATE |
