NSN 5120-00-095-3041
Part Details | TORQUE WRENCH ADAPTER
5120-00-095-3041 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.
Alternate Parts: PWA4248, 5120-00-095-3041, 00-095-3041, 5120000953041, 000953041
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-095-3041 | 60023 ( ADAPTER, TORQUE WRENCH ) |

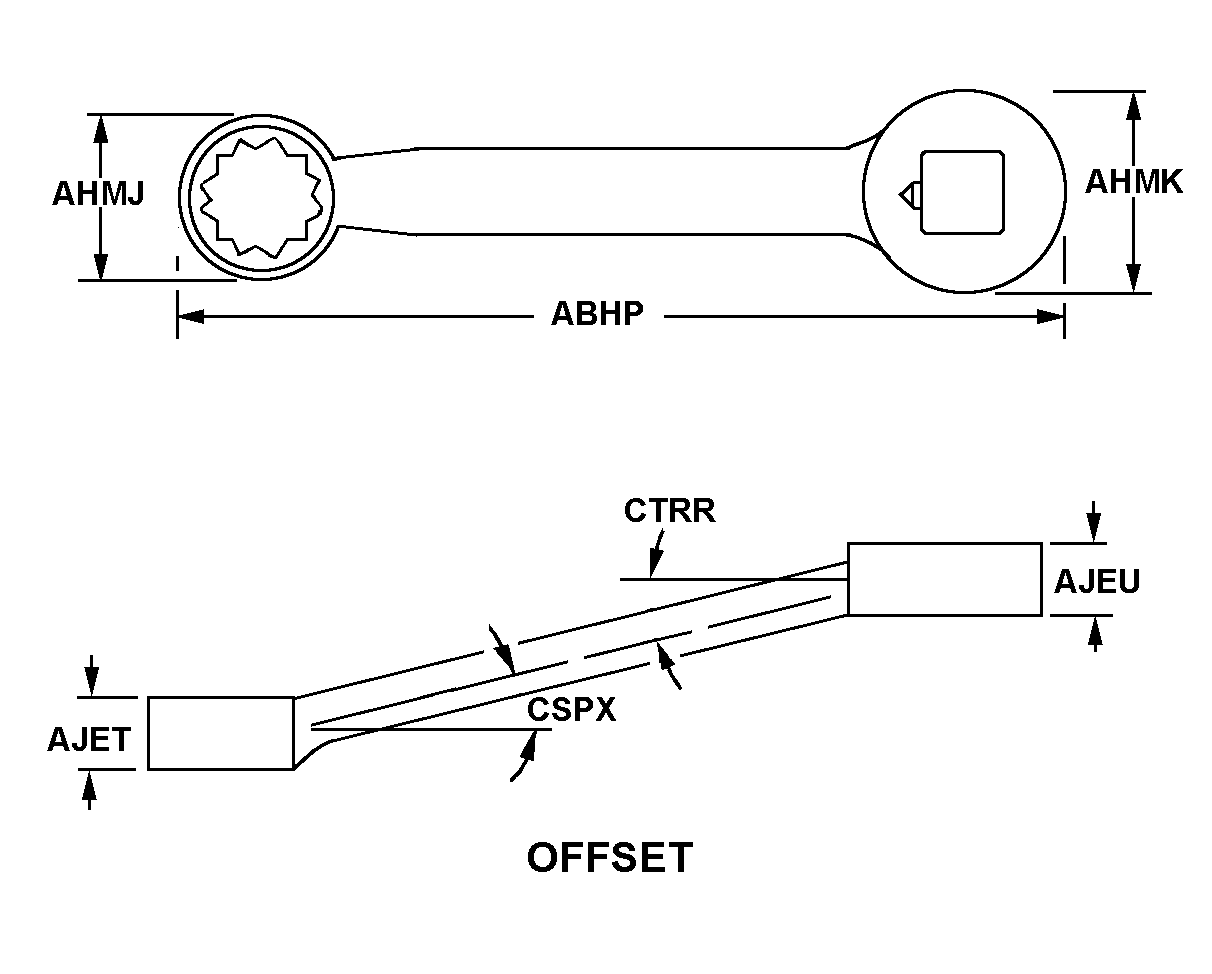

REFERENCE DRAWINGS & PICTURES
OFFSET
Cross Reference | NSN 5120-00-095-3041
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA4248 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
Technical Data | NSN 5120-00-095-3041
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET |
| WRENCHING END OUTSIDE DIAMETER | 0.730 INCHES NOMINAL |
| DRIVE END OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| WRENCHING END HEAD THICKNESS | 0.630 INCHES NOMINAL |
| DRIVE END HEAD THICKNESS | 0.688 INCHES NOMINAL |
| WRENCHING END OFFSET ANGLE | 42.0 DEGREES NOMINAL |
| DRIVE END OFFSET ANGLE | 0.0 DEGREES NOMINAL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| FUNCTIONAL DESCRIPTION | USED ON AIRCRAFT 9/16 CYL NUT |
