NSN 5120-00-095-3127
Part Details | SPANNER WRENCH
5120-00-095-3127 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: PWA5073, 5120-00-095-3127, 00-095-3127, 5120000953127, 000953127
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-095-3127 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

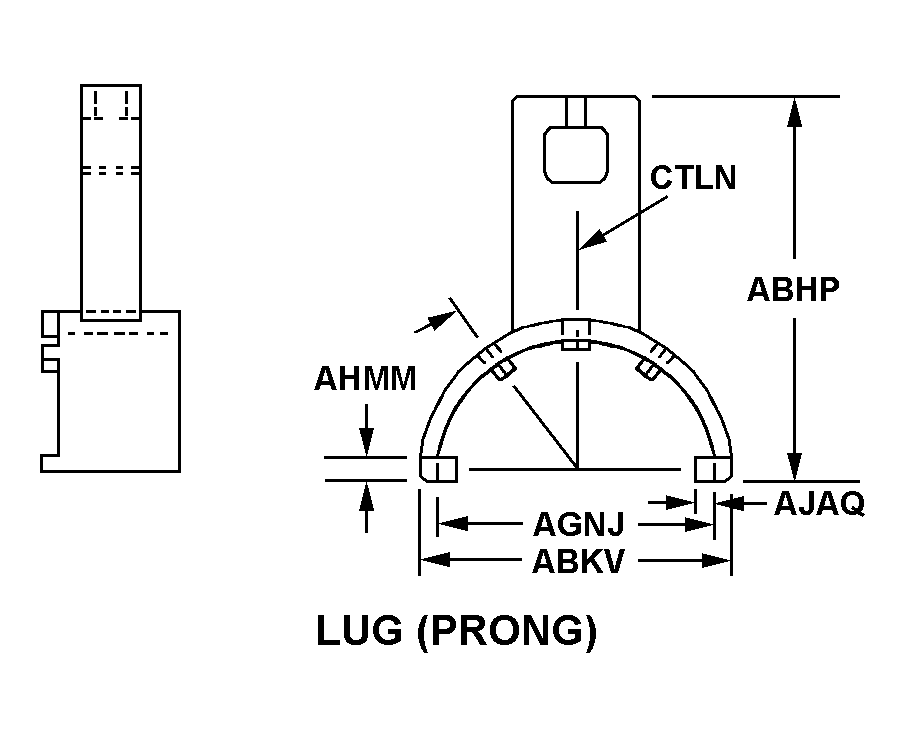

LUG
Cross Reference | NSN 5120-00-095-3127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA5073 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-095-3127
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| OPENING DIAMETER | 3.000 INCHES NOMINAL |
| LUG WIDTH | 0.344 INCHES NOMINAL |
| LUG LENGTH | 0.375 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 60.0 DEGREES NOMINAL |
| SPECIAL FEATURES | 4 LUGS |
