NSN 5120-00-095-6720
Part Details | SPANNER WRENCH
5120-00-095-6720 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: HSP306, 5120-00-095-6720, 00-095-6720, 5120000956720, 000956720
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-095-6720 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

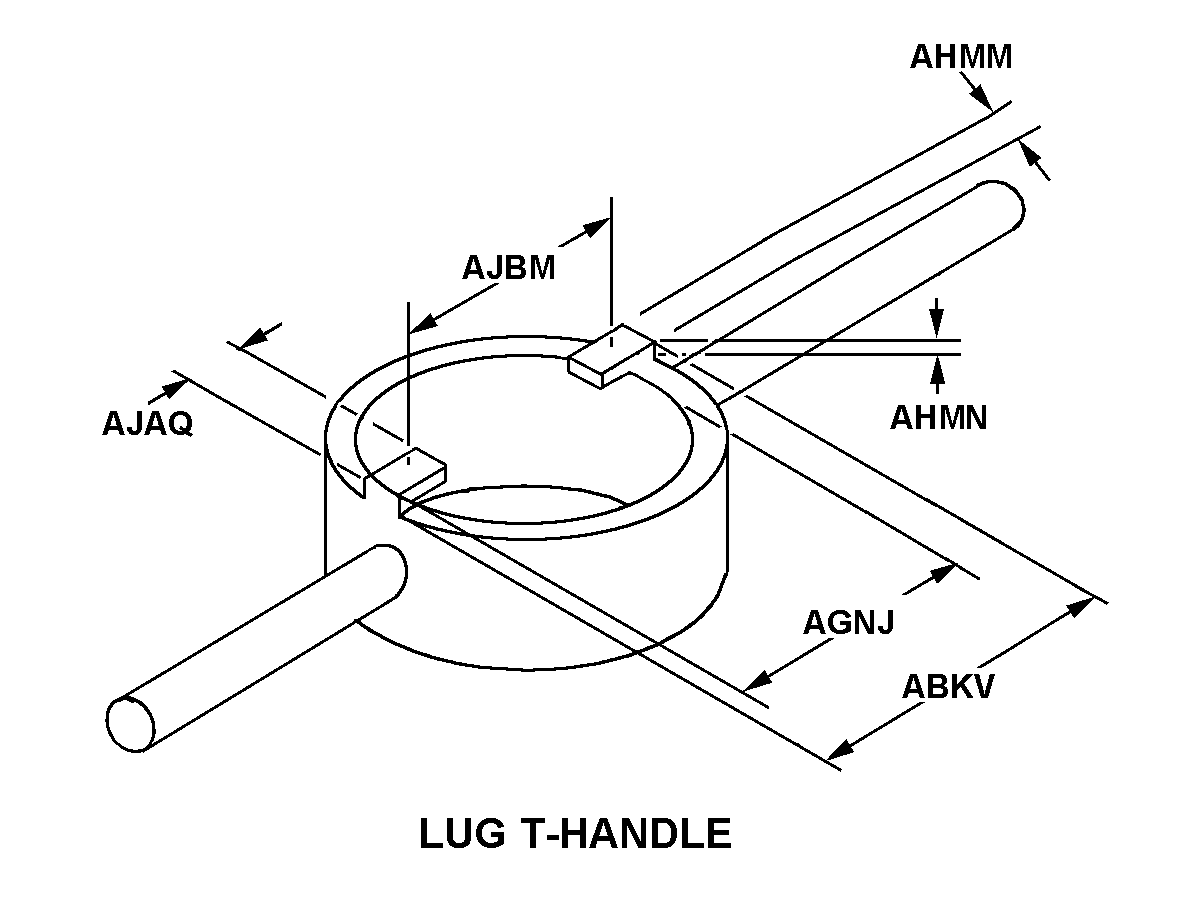

LUG T-HANDLE
Cross Reference | NSN 5120-00-095-6720
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HSP306 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Technical Data | NSN 5120-00-095-6720
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG T-HANDLE |
| OPENING DIAMETER | 4.906 INCHES NOMINAL |
| LUG THICKNESS | 0.281 INCHES NOMINAL |
