NSN 5120-00-096-3231
Part Details | OPEN END WRENCH
5120-00-096-3231 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: 8390327, 5120-00-096-3231, 00-096-3231, 5120000963231, 000963231
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-096-3231 | 17182 ( WRENCH, OPEN END ) |
REFERENCE DRAWINGS & PICTURES

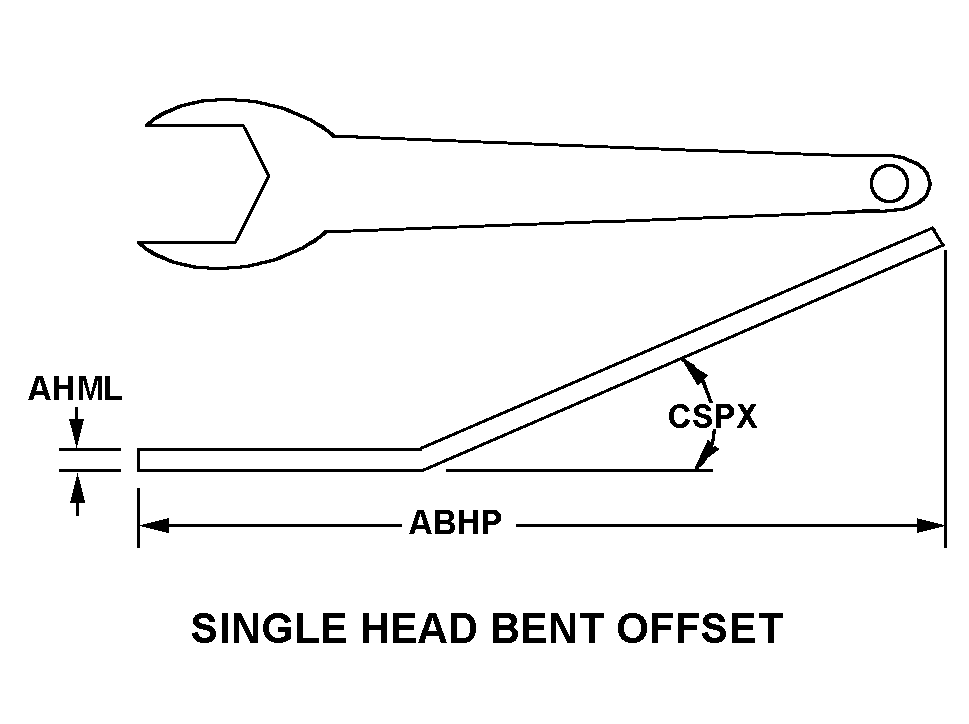

SINGLE HEAD BENT OFFSET
Cross Reference | NSN 5120-00-096-3231
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8390327 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5120-00-096-3231
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE HEAD BENT OFFSET |
| OVERALL LENGTH | 19.375 INCHES NOMINAL |
| HEAD THICKNESS | 0.500 INCHES NOMINAL |
| WRENCHING END OFFSET ANGLE | 30.0 DEGREES MINIMUM AND 32.0 DEGREES MAXIMUM |
