NSN 5120-00-106-4734
Part Details | SPANNER WRENCH
5120-00-106-4734 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: PWA14779, 5120-00-106-4734, 00-106-4734, 5120001064734, 001064734
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JUL 15, 1968 | 00-106-4734 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

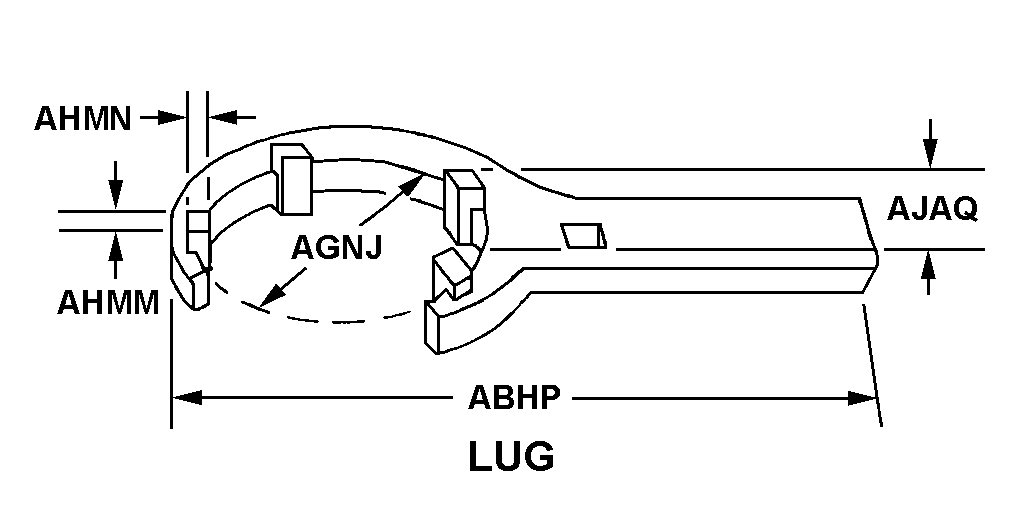

LUG
Cross Reference | NSN 5120-00-106-4734
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA14779 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-106-4734
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 2.625 INCHES NOMINAL |
| OPENING DIAMETER | 1.781 INCHES NOMINAL |
| LUG WIDTH | 0.325 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| LUG THICKNESS | 0.149 INCHES MINIMUM AND 0.151 INCHES MAXIMUM |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
