NSN 5120-00-113-3571
Part Details | RETAINING RING PLIERS
5120-00-113-3571 See also PLIERS and PLIERS (as modified).
Alternate Parts: L1520, L-1520, L1520, L-1520, 5120-00-113-3571, 00-113-3571, 5120001133571, 001133571
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | NOV 13, 1972 | 00-113-3571 | 19019 ( PLIERS, RETAINING RING ) |
REFERENCE DRAWINGS & PICTURES

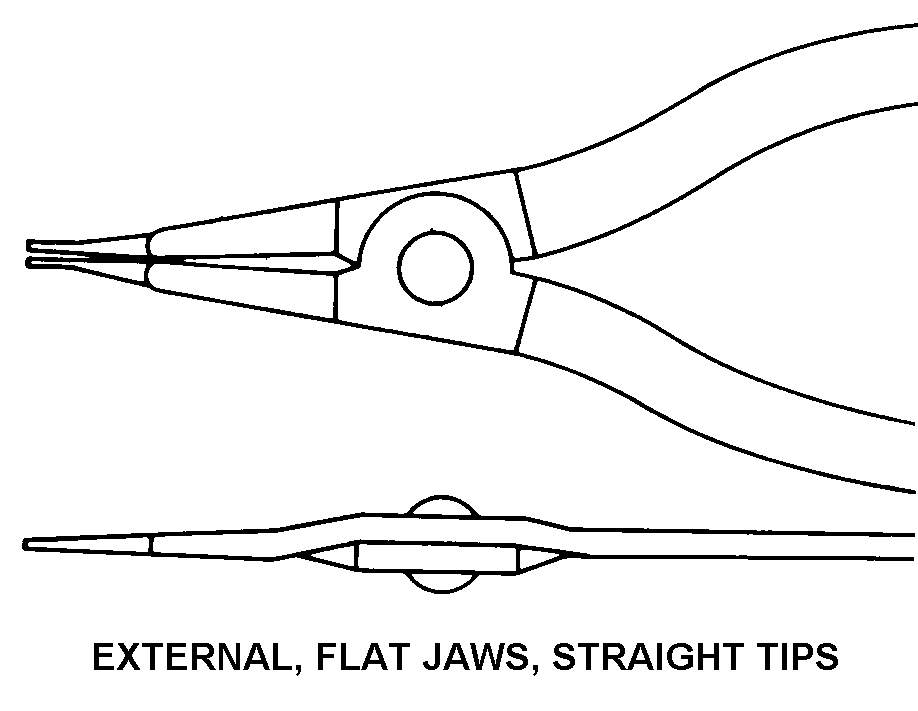

EXTERNAL, FLAT JAWS, STRAIGHT TIPS
Cross Reference | NSN 5120-00-113-3571
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L-1520 | 07382 | ROTOR CLIP COMPANY INC.DBA ROTOR CLAMP |
| L-1520 | 79136 | TRUARC COMPANY LLCDBA WALDES TRUARC |
Technical Data | NSN 5120-00-113-3571
| Characteristic | Specifications |
|---|---|
| PLIERS STYLE DESIGNATOR | EXTERNAL, FLAT JAWS, STRAIGHT TIPS |
| TIP ANGLE IN DEG | 0.0 |
| RING TYPE ACCOMMODATED | WALDES TRUARC SERIES 5555 |
| RING SIZE/PLIERS TIP DIAMETER | 0.047 IN. DIA TIP |
| SPECIAL FEATURES | WITH ADJUSTABLE STOP AND SPRING |
