NSN 5120-00-113-3616
Part Details | HAND HAMMER
5120-00-113-3616 A tool with a striking face on one or both ends of a metallic weighted head fixed crosswise to a handle. It is used to strike and/or drive objects, or beat malleable materials. For items stocked without FACE, HAMMER, INSERTED, see HOLDER, INSERTED HAMMER FACE. Excludes DRIVER, COOPER'S and mechanical hammers. See also MALLET (as modified).
Alternate Parts: 24502247001, 2450-2247-001, GGGH86, GGG-H-86, GGGH86 TY10CL1, GGG-H-86 TY10CL1, 13441, 01108, 5120-00-113-3616, 00-113-3616, 5120001133616, 001133616
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 21, 1973 | 00-113-3616 | 05970 ( HAMMER, HAND ) |
REFERENCE DRAWINGS & PICTURES

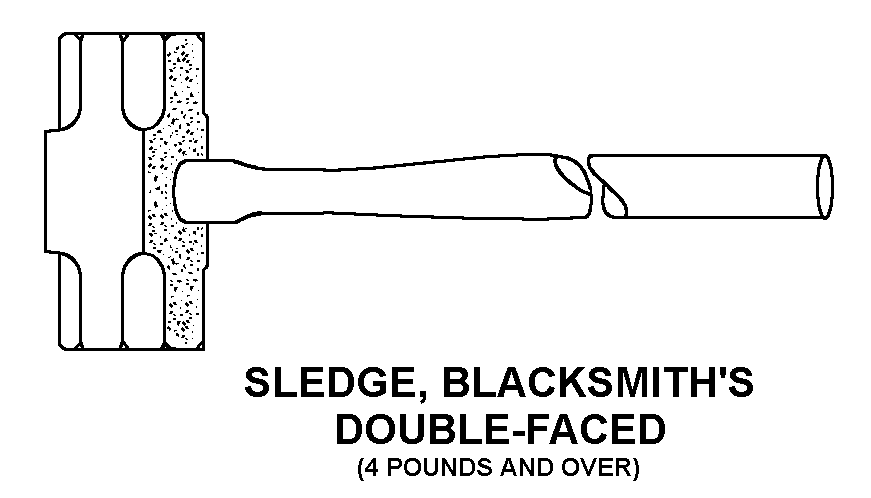

SLEDGE, BLACKSMITH'S DOUBLE-FACED
Cross Reference | NSN 5120-00-113-3616
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2450-2247-001 | 06032 | ANTENNA PRODUCTS CORPORATION |
| GGG-H-86 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-H-86 TY10CL1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 13441 | 79202 | WARWOOD TOOL COMPANY |
| 01108 | 66080 | WILTON CORPWILTON TOOL DIV |
Technical Data | NSN 5120-00-113-3616
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLEDGE, BLACKSMITH'S DOUBLE-FACED |
| HEAD WEIGHT | 4.000 POUNDS |
| HANDLE MATERIAL | WOOD |
| HANDLE LENGTH | 15.000 INCHES NOMINAL |
| SPECIAL FEATURES | HICKORY HANDLE |
