NSN 5120-00-116-7543
Part Details | CRAFTSMAN'S TWEEZERS
5120-00-116-7543 A hand tool used by jewelers, opticians, and the like. It is designed to produce a gripping action by the spring tension type blades. Excludes FORCEPS (as modified) and TWEEZERS, HAIR.
Alternate Parts: 7E46257, 7E46-257, GGGT00870, GGG-T-00870, 5120001167543, 5120-00-116-7543, GGGT00870 TY4CL2DEB, GGG-T-00870 TY4CL2DEB, 722698234, 722698-234, 5120-00-116-7543, 00-116-7543, 5120001167543, 001167543
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | FEB 07, 1973 | 00-116-7543 | 06965 ( TWEEZERS, CRAFTSMAN'S ) |
REFERENCE DRAWINGS & PICTURES

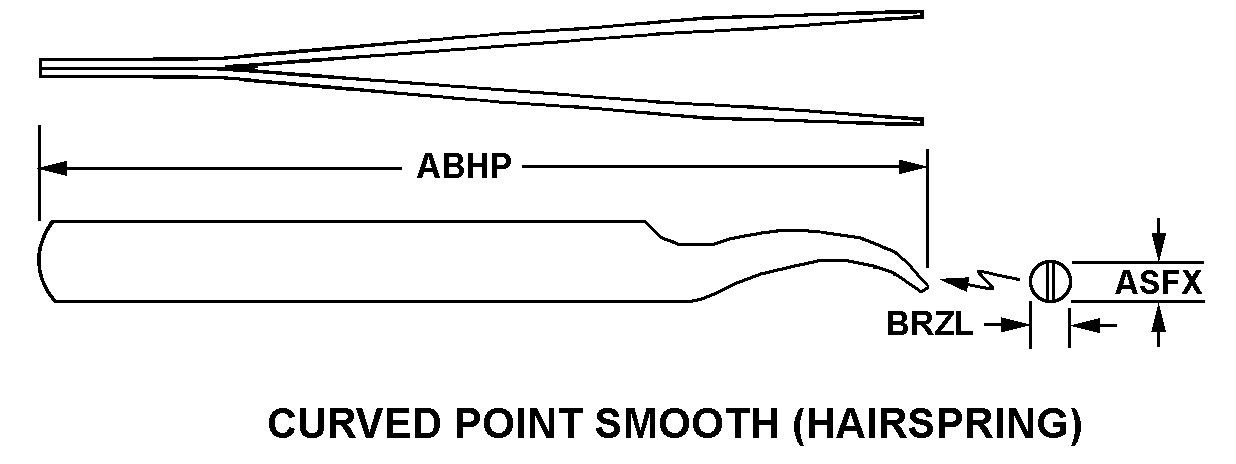

CURVED POINT SMOOTH (HAIRSPRING)
Cross Reference | NSN 5120-00-116-7543
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7E46-257 | S0111 | DUMONT A ET FILS |
| GGG-T-00870 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 5120-00-116-7543 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| GGG-T-00870 TY4CL2DEB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 722698-234 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5120-00-116-7543
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A CURVED POINT SMOOTH (HAIRSPRING) |
| CLOSED TIP THICKNESS | 0.010 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
| TIP WIDTH | 0.005 INCHES MINIMUM AND 0.020 INCHES MAXIMUM |
| FEATURES PROVIDED | NONMAGNETIC |
