NSN 5120-00-121-8991
Part Details | SPANNER WRENCH
5120-00-121-8991 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 56627T2, 5120-00-121-8991, 00-121-8991, 5120001218991, 001218991
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | OCT 25, 1968 | 00-121-8991 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

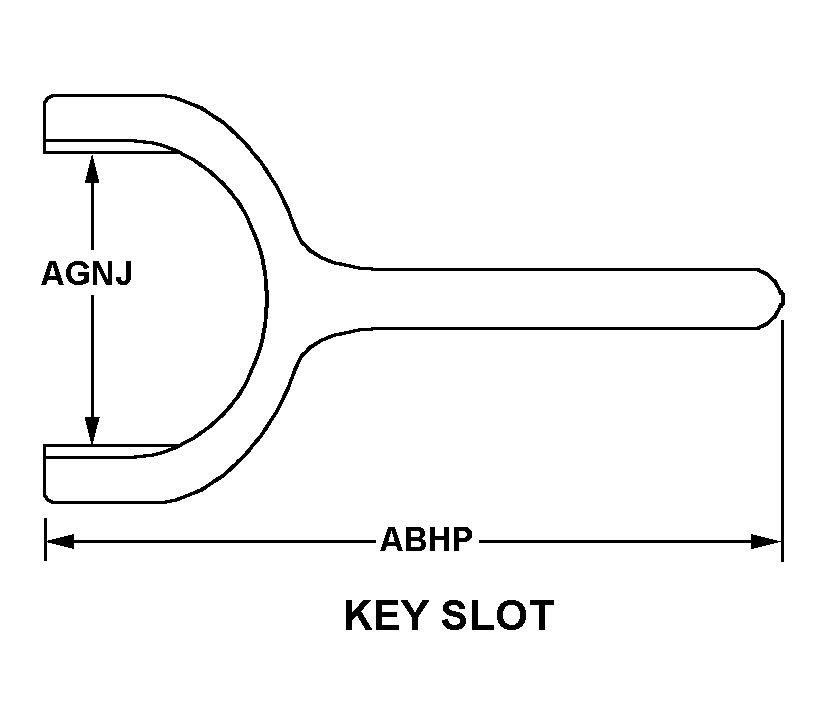

KEY SLOT
Cross Reference | NSN 5120-00-121-8991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 56627T2 | 93835 | PARKER-HANNIFIN CORPORATIONDBA HYDRAULIC SYSTEMS DIVISION |
Technical Data | NSN 5120-00-121-8991
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY SLOT |
| OPENING DIAMETER | 1.237 INCHES NOMINAL |
| SPECIAL FEATURES | INCL PINS,QTY 3,1/8 IN. BY 3/8 IN. BY 7/16 IN.; AND 1 SHAFT 1 7/8 IN. BY 2 1/8 IN.; AND 3 SOC HD SCREWS NO. 10-32 BY 5/16 IN. |
