NSN 5120-00-125-6967
Part Details | SPANNER WRENCH
5120-00-125-6967 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: TX151367, TX151367, TX151367, 5120-00-125-6967, 00-125-6967, 5120001256967, 001256967
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | NOV 13, 1968 | 00-125-6967 | 03476 ( WRENCH, SPANNER ) |

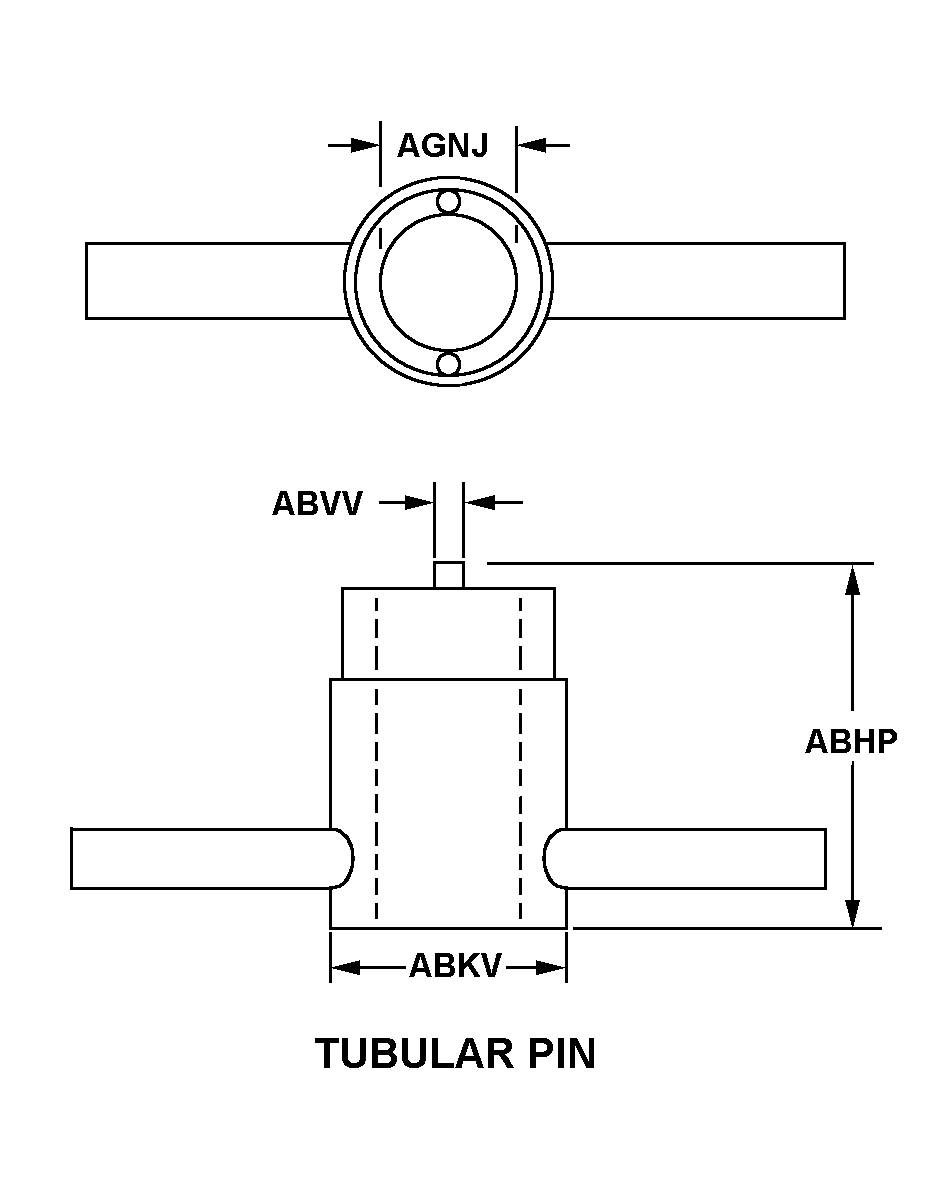

REFERENCE DRAWINGS & PICTURES
TUBULAR PIN
Cross Reference | NSN 5120-00-125-6967
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TX151367 | 79294 | E-SYSTEMS INCMONTEK DIV |
| TX151367 | 94697 | MOOG INC.DBA MOOG |
| TX151367 | 19156 | MOOG INC.DIV MOOG AIRCRAFT, SALT LAKE |
Technical Data | NSN 5120-00-125-6967
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR PIN |
| OVERALL LENGTH | 3.100 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| PIN DIAMETER | 0.122 INCHES MINIMUM AND 0.124 INCHES MAXIMUM |
| OPENING DIAMETER | 0.253 INCHES NOMINAL |
| FEATURES PROVIDED | REMOVABLE HANDLE |
