NSN 5120-00-131-8638
Part Details | FACE SPANNER WRENCH SOCKET
5120-00-131-8638 An item designed to be driven by an external or internal drive. It has a face type spanner end.
Alternate Parts: 471500231T215, 47-150-023-1T215, 471500231T215, 47-150-023-1T215, 471400231T215, 47-140-023-1T215, 471400231T215, 47-140-023-1T215, 5120-00-131-8638, 00-131-8638, 5120001318638, 001318638
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-131-8638 | 03543 ( SOCKET, WRENCH, FACE SPANNER ) |

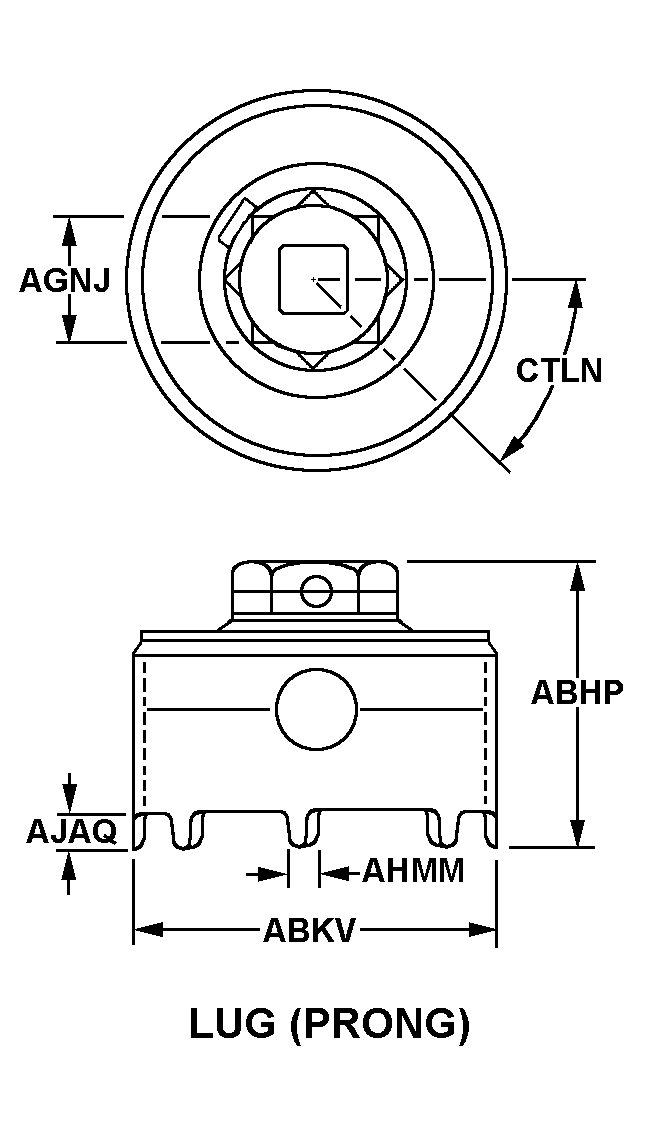

REFERENCE DRAWINGS & PICTURES
LUG
Cross Reference | NSN 5120-00-131-8638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 47-150-023-1T215 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 47-150-023-1T215 | 80070 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 47-140-023-1T215 | 80070 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 47-140-023-1T215 | 04614 | TEXTRON SYSTEMS CORPORATIONDBA TEXTRON DEFENSE SYSTEMS |
Technical Data | NSN 5120-00-131-8638
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.750 INCHES NOMINAL |
| OPENING DIAMETER | 1.000 INCHES NOMINAL |
| LUG WIDTH | 0.203 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| LUG LENGTH | 0.250 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 90.0 DEGREES NOMINAL |
| SPECIAL MARKINGS | TORQUE 400-800 INCH-POINDS |
