NSN 5120-00-131-8661
Part Details | SPANNER WRENCH
5120-00-131-8661 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: T100056, 5120-00-131-8661, 00-131-8661, 5120001318661, 001318661
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-131-8661 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

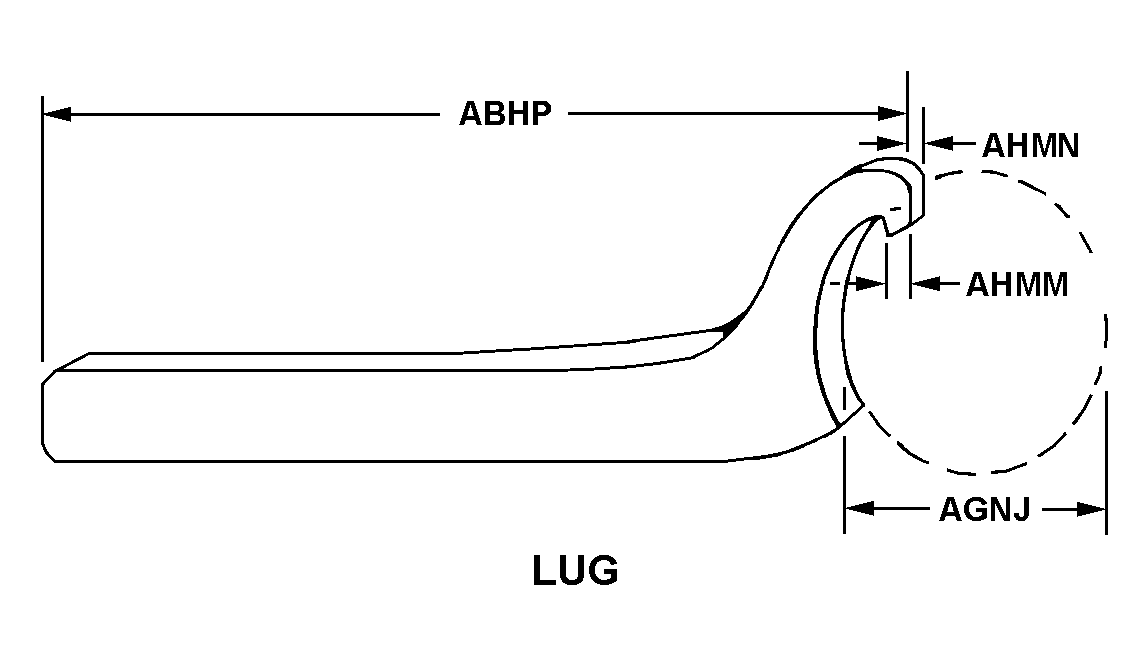

LUG
Cross Reference | NSN 5120-00-131-8661
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T100056 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
Technical Data | NSN 5120-00-131-8661
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| OPENING DIAMETER | 5.060 INCHES NOMINAL |
| LUG WIDTH | 0.375 INCHES NOMINAL |
| LUG THICKNESS | 0.470 INCHES NOMINAL |
