NSN 5120-00-132-2693
Part Details | TORQUE WRENCH
5120-00-132-2693 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.
Alternate Parts: 1C6794P01, TS15R, 5120-00-132-2693, 00-132-2693, 5120001322693, 001322693
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | NOV 28, 1974 | 00-132-2693 | 17611 ( WRENCH, TORQUE ) |
REFERENCE DRAWINGS & PICTURES

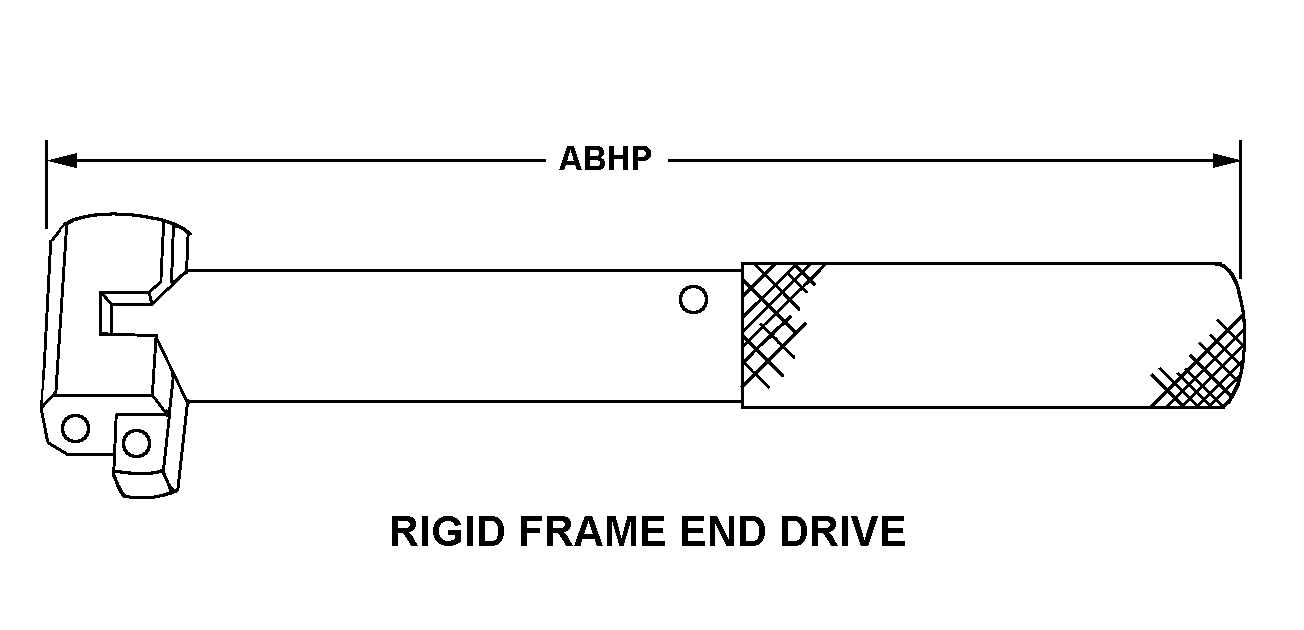

RIGID FRAME END DRIVE
Cross Reference | NSN 5120-00-132-2693
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1C6794P01 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| TS15R | 32652 | MOUNTZ D G ASSOCIATES INC |
Technical Data | NSN 5120-00-132-2693
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RIGID FRAME END DRIVE |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| TORQUE CAPACITY | 36.0 INCH-POUNDS MINIMUM AND 180.0 INCH-POUNDS MAXIMUM |
| TORQUE INDICATING MECHANISM | PRESET-FIXED |
| TORQUE SIGNAL METHOD | AUDIBLE |
