NSN 5120-00-133-0806
Part Details | RATCHET WRENCH
5120-00-133-0806 A single or double end wrench having a reversible or nonreversible ratchet socket on one or both ends. One end may have a fixed socket or handgrip. It may have a wrench opening through the handle. For items with drive tang, see HANDLE, SOCKET WRENCH.
Alternate Parts: 65351018, 65-35-1018, 1190190210, 11901/90210, 11210, 11S 58, 11S 5/8, 2716700959283PCK3, 271-6700-959283PCK3, 7044645008 PC18, 704-4645008 PC18, 7004645008 PC18, 700-4645008 PC18, 5120-00-133-0806, 00-133-0806, 5120001330806, 001330806
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | MAR 08, 1974 | 00-133-0806 | 30273 ( WRENCH, RATCHET ) |
REFERENCE DRAWINGS & PICTURES

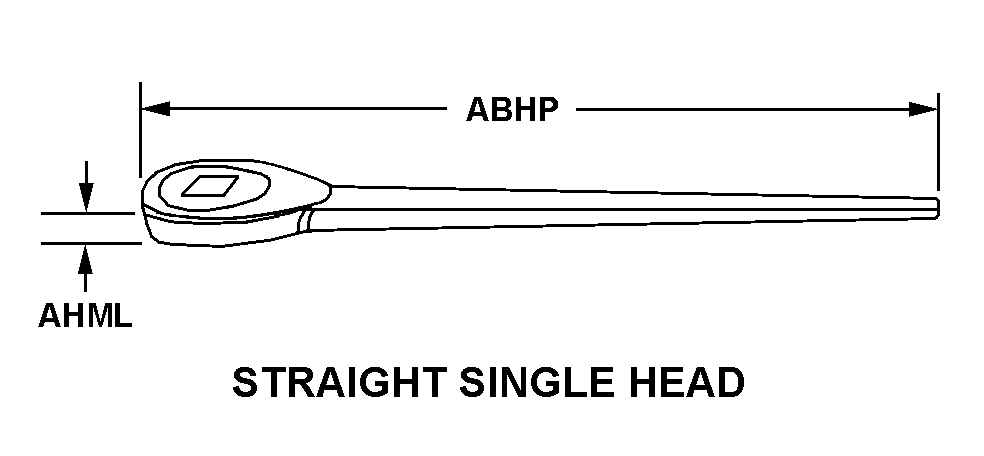

STRAIGHT SINGLE HEAD
Cross Reference | NSN 5120-00-133-0806
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65-35-1018 | 96169 | ELECTRIC BOAT CORPORATION |
| 11901/90210 | 37078 | LOWELL CORPORATIONDBA PORTER-FERGUSON |
| 11210 | 37078 | LOWELL CORPORATIONDBA PORTER-FERGUSON |
| 11S 5/8 | 37078 | LOWELL CORPORATIONDBA PORTER-FERGUSON |
| 271-6700-959283PCK3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 704-4645008 PC18 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 700-4645008 PC18 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5120-00-133-0806
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SINGLE HEAD |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| HEAD THICKNESS | 0.719 INCHES NOMINAL |
| FEATURES PROVIDED | REVERSIBLE RATCHET |
