NSN 5120-00-142-4224
Part Details | CROWFOOT SOCKET WRENCH HEAD
5120-00-142-4224 A component with a square internal drive eccentric to an open-wall opening designed to receive any of a series of wrenching sockets, adapters, or attachments. See also CROWFOOT ATTACHMENT, SOCKET WRENCH and SOCKET, CROWFOOT WRENCH HEAD.
Alternate Parts: PWA1471, 5120-00-142-4224, 00-142-4224, 5120001424224, 001424224
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-142-4224 | 17104 ( HEAD, CROWFOOT SOCKET WRENCH ) |
REFERENCE DRAWINGS & PICTURES

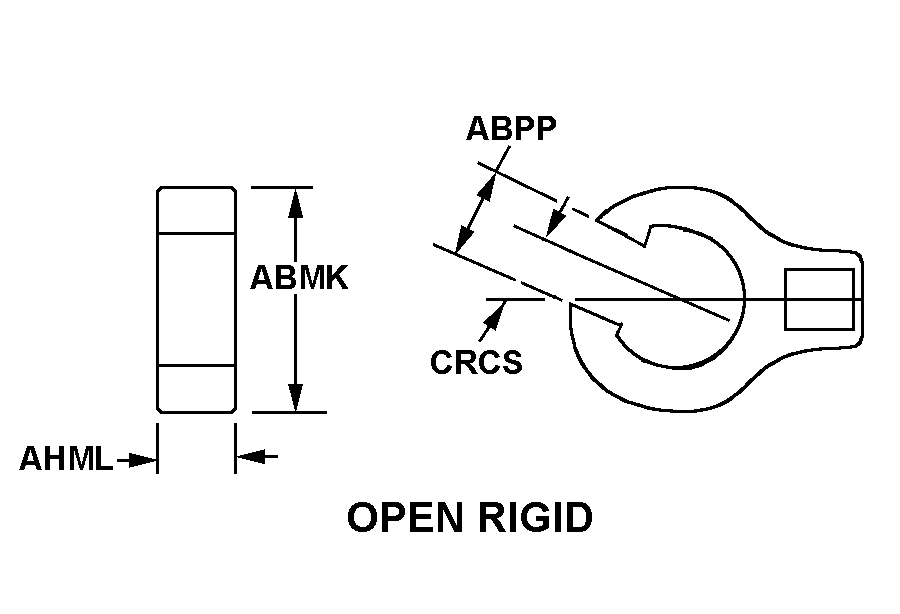

OPEN RIGID
Cross Reference | NSN 5120-00-142-4224
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA1471 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-142-4224
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN RIGID |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| OPENING WIDTH | 0.568 INCHES NOMINAL |
| HEAD THICKNESS | 0.375 INCHES NOMINAL |
| HEAD ANGLE | 15.0 DEGREES NOMINAL |
