NSN 5120-00-142-7056
Part Details | SOCKET WRENCH ADAPTER-EXTENSION
5120-00-142-7056 A rigid item four inches (101.6 mm) or over in length. Used to connect sockets to handles, power tools or to other attachments which are not designed for direct mating to each other. See also RATCHET ATTACHMENT, SOCKET WRENCH; UNIVERSAL JOINT, SOCKET WRENCH ATTACHMENT; EXTENSION, SOCKET WRENCH; ADAPTER, SOCKET, CROWFOOT SOCKET WRENCH HEAD; and ADAPTER, SOCKET WRENCH. Excludes HOLDER, SCREWDRIVER BIT, FEMALE SQUARE DRIVE.
Alternate Parts: PWA3109, 5120-00-142-7056, 00-142-7056, 5120001427056, 001427056
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-142-7056 | 17016 ( ADAPTER-EXTENSION, SOCKET WRENCH ) |
REFERENCE DRAWINGS & PICTURES

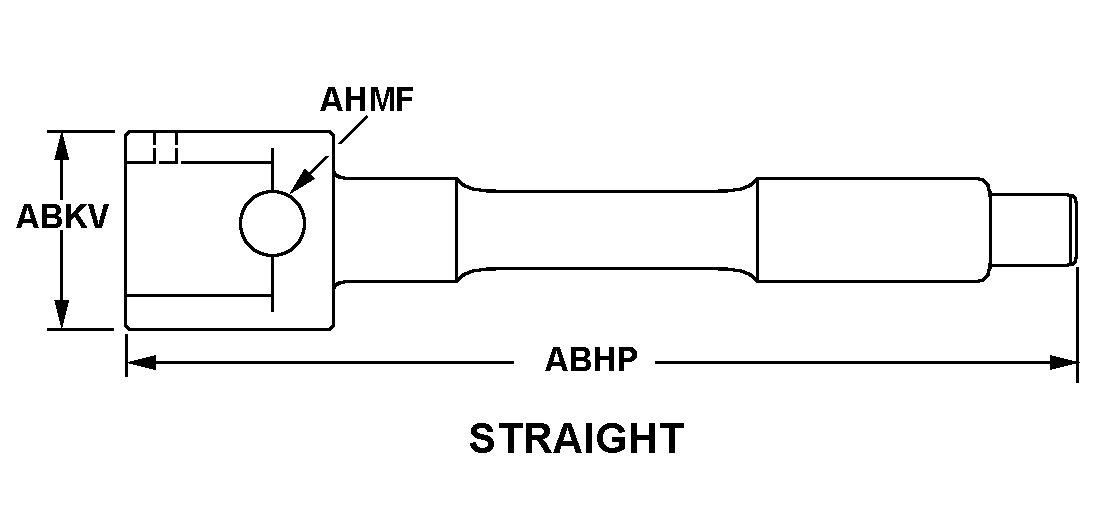

STRAIGHT
Cross Reference | NSN 5120-00-142-7056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA3109 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-142-7056
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| HANDLE HOLE DIAMETER | 0.328 INCHES NOMINAL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
