NSN 5120-00-142-7138
Part Details | BOX WRENCH
5120-00-142-7138 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: 5120L20004, 5120L20-004, PWA1608, 5120-00-142-7138, 00-142-7138, 5120001427138, 001427138
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-142-7138 | 03555 ( WRENCH, BOX ) |
REFERENCE DRAWINGS & PICTURES

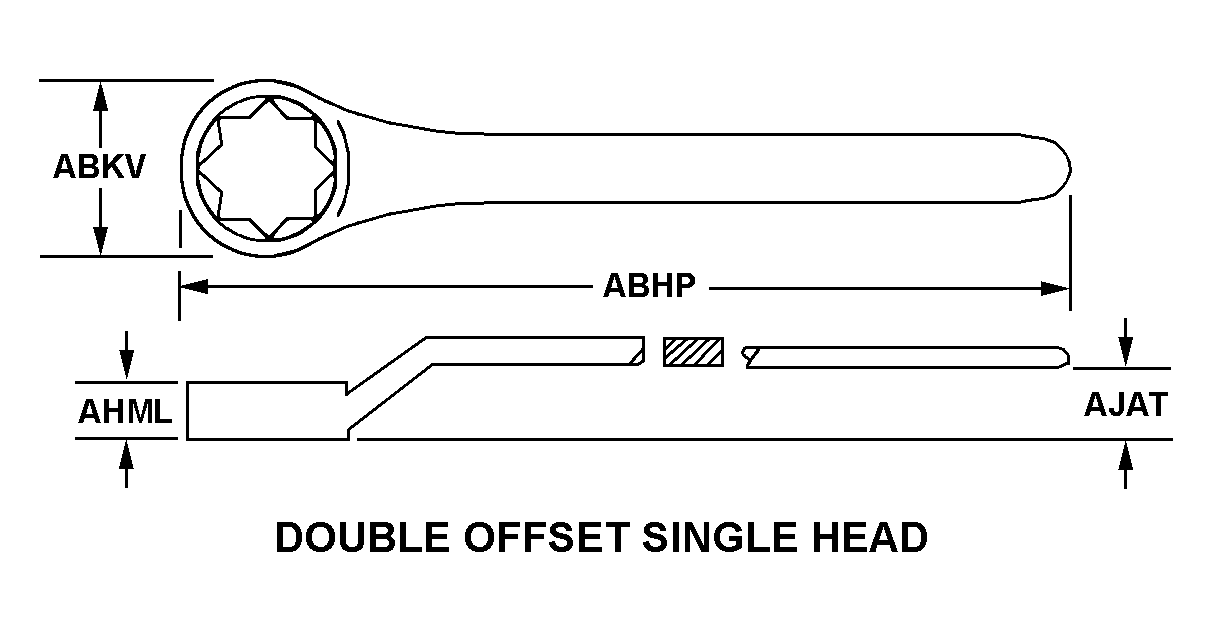

DOUBLE OFFSET SINGLE HEAD
Cross Reference | NSN 5120-00-142-7138
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5120L20-004 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
| PWA1608 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-142-7138
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE OFFSET SINGLE HEAD |
| OVERALL LENGTH | 3.375 INCHES NOMINAL |
| HEAD THICKNESS | 0.156 INCHES NOMINAL |
| OFFSET HEIGHT | 0.375 INCHES NOMINAL |
| SPECIAL FEATURES | WITH 5/16 IN. HOLE THROUGH END OFHANDLE;HARDNESS ROCKWELL C40-45 |
