NSN 5120-00-142-7143
Part Details | TORQUE WRENCH ADAPTER
5120-00-142-7143 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.
Alternate Parts: PWA1634, 5120-00-142-7143, 00-142-7143, 5120001427143, 001427143
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-142-7143 | 60023 ( ADAPTER, TORQUE WRENCH ) |

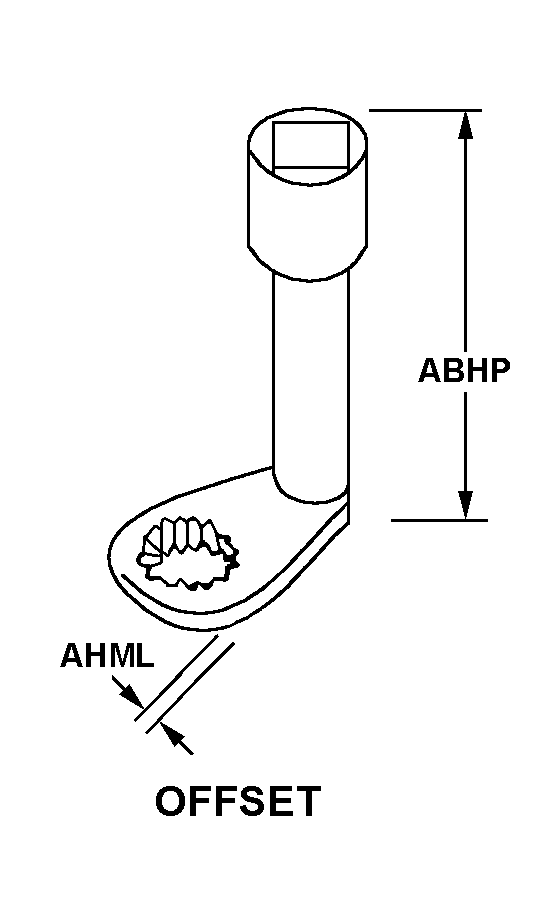

REFERENCE DRAWINGS & PICTURES
OFFSET
Cross Reference | NSN 5120-00-142-7143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA1634 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-142-7143
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET |
| OVERALL LENGTH | 2.141 INCHES NOMINAL |
| HEAD THICKNESS | 0.484 INCHES NOMINAL |
| SPECIAL FEATURES | RIGHT HAND OFFSET HEAD |
| FUNCTIONAL DESCRIPTION | USED TO INSTALL/REMOVE CYLINDER NUT |
