NSN 5120-00-142-7786
Part Details | DRAIN PLUG WRENCH
5120-00-142-7786 A wrench specifically designed for removing and replacing drain plugs installed in engine bases, transmission housings, transfer cases, fuel tanks, shock absorbers, differential housings, pontoons, and the like. See also WRENCH, BUNG.
Alternate Parts: 5120H37000, 5120H37-000, PWA1787, 5120-00-142-7786, 00-142-7786, 5120001427786, 001427786
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-142-7786 | 03412 ( WRENCH, DRAIN PLUG ) |

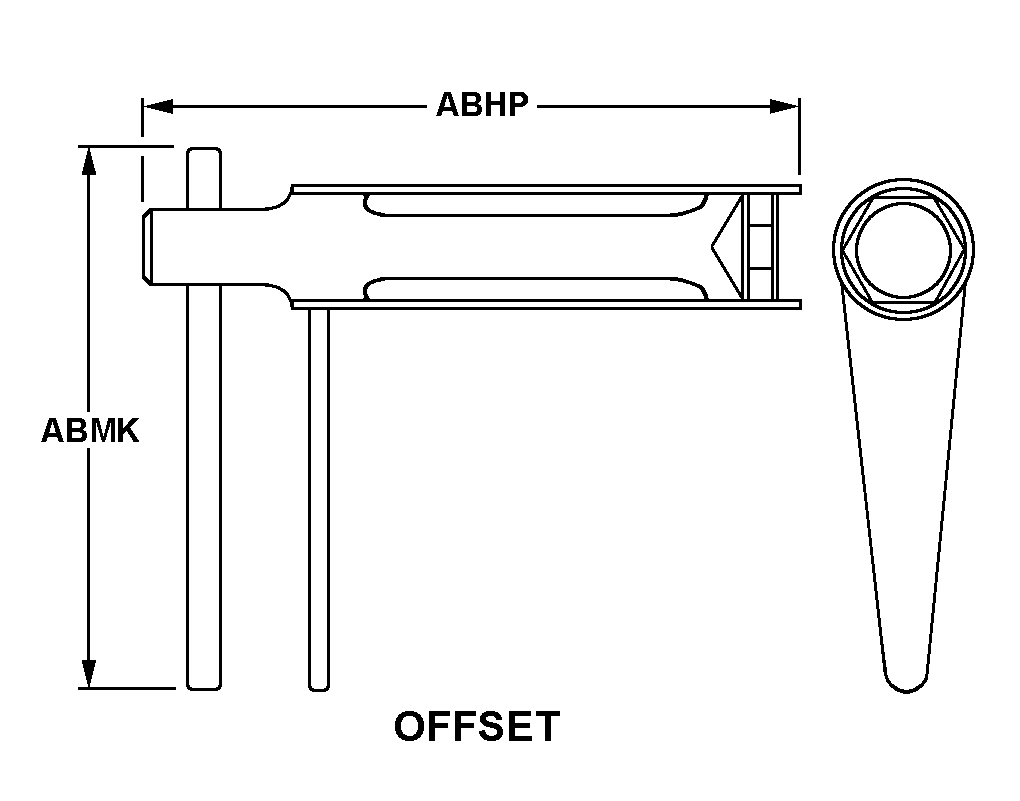

REFERENCE DRAWINGS & PICTURES
OFFSET
Cross Reference | NSN 5120-00-142-7786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5120H37-000 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
| PWA1787 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-142-7786
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OFFSET |
| OVERALL LENGTH | 7.750 INCHES NOMINAL |
| OVERALL WIDTH | 12.000 INCHES NOMINAL |
| SPECIAL FEATURES | W/2 TEETH 0.177 IN. W BY 0.078 IN. LG LOCATED 180 DEG APART |
