NSN 5120-00-142-7988
Part Details | BOX WRENCH
5120-00-142-7988 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: SAC214, PWA2397, 5120-00-142-7988, 00-142-7988, 5120001427988, 001427988
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-142-7988 | 03555 ( WRENCH, BOX ) |

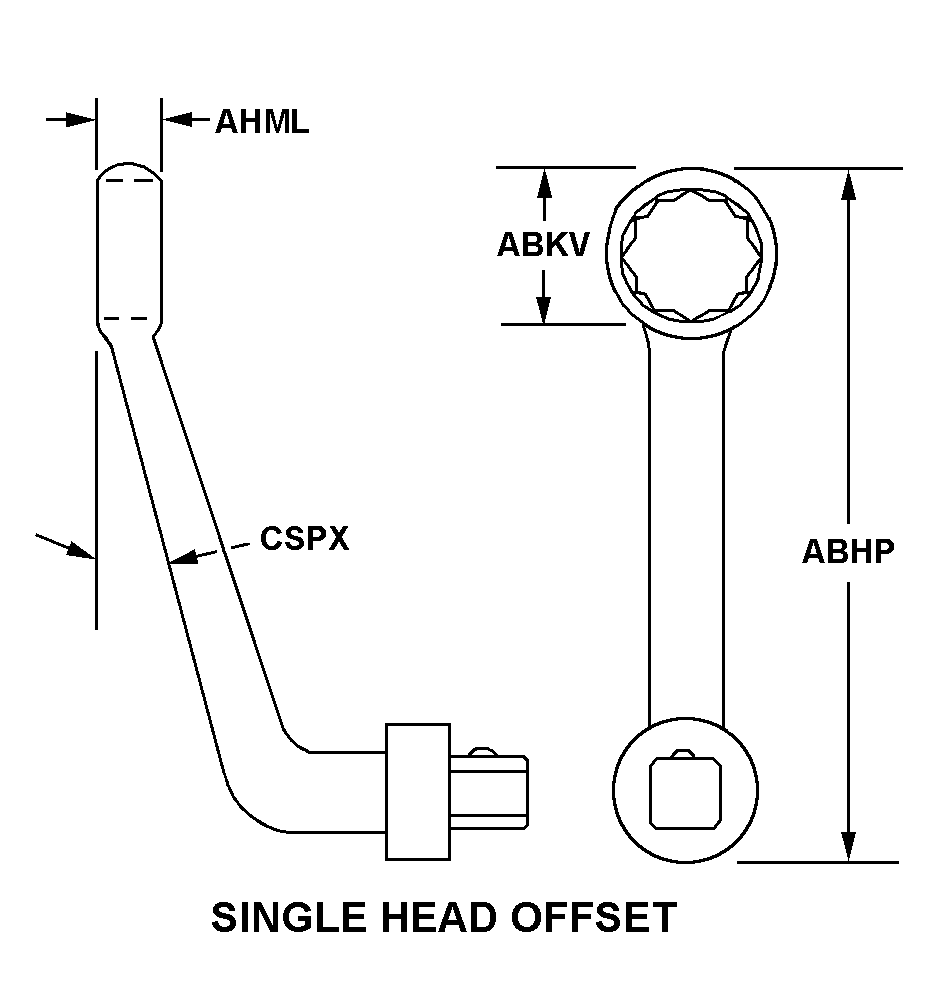

REFERENCE DRAWINGS & PICTURES
SINGLE HEAD OFFSET
Cross Reference | NSN 5120-00-142-7988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SAC214 | 13033 | COOPER INDUSTRIES INCCOOPER AIRMOTIVE DIV |
| PWA2397 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-142-7988
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE HEAD OFFSET |
| OVERALL LENGTH | 4.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.790 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| HEAD THICKNESS | 0.406 INCHES NOMINAL |
| WRENCHING END OFFSET ANGLE | 28.0 DEGREES NOMINAL |
| SPECIAL FEATURES | MALE DRIVE |
