NSN 5120-00-152-2143
Part Details | MECHANICAL PULLER
5120-00-152-2143 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.
Alternate Parts: GGGP781, GGG-P-781, GGGP781 TY1CL7, GGG-P-781 TY1CL7, CG243, 5120-00-152-2143, 00-152-2143, 5120001522143, 001522143
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | FEB 19, 1971 | 00-152-2143 | 18913 ( PULLER, MECHANICAL ) |

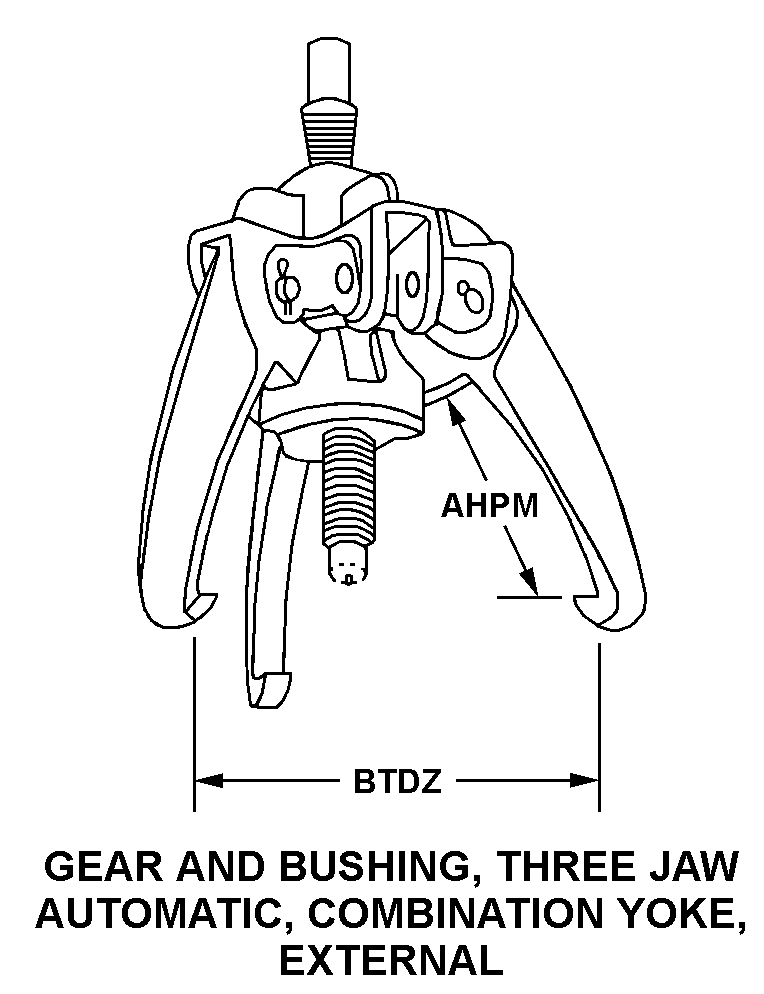

REFERENCE DRAWINGS & PICTURES
GEAR AND BEARING, THREE JAW AUTOMATIC, COMBINATION YOKE, EXTERNAL
Cross Reference | NSN 5120-00-152-2143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-P-781 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-P-781 TY1CL7 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| CG243 | 55719 | IDSC HOLDINGS LLCDBA SNAP-ON INDUSTRIAL |
Technical Data | NSN 5120-00-152-2143
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GEAR AND BEARING, THREE JAW AUTOMATIC, COMBINATION YOKE, EXTERNAL |
| REACH LENGTH | 2.500 INCHES MAXIMUM |
| SPREAD RANGE | 3.000 INCHES MAXIMUM |
| SPECIAL FEATURES | 2-1/2 TON CAPACITY; 3/8-16 THREAD X 5-1/16 IN. FORCING SCREW; REVERSIBLE JAWS; 3 IN. MAX OUTSIDE SPREAD, 7/8 TO 3-1/4 IN. MAX INSIDE SPREAD |
