NSN 5120-00-157-2133
Part Details | SPANNER WRENCH
5120-00-157-2133 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 1315511, 131551-1, 394755, 39-4755, 0474, 0-474, 0116770000, 11677, JC497, C497, 0474, 0-474, 5120-00-157-2133, 00-157-2133, 5120001572133, 001572133
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | APR 24, 1970 | 00-157-2133 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

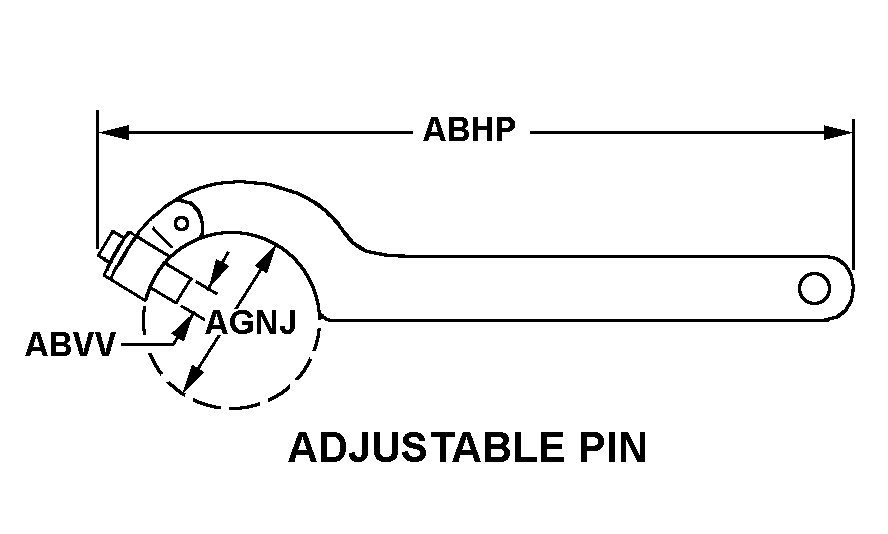

ADJUSTABLE PIN
Cross Reference | NSN 5120-00-157-2133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 131551-1 | 24930 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, RADAR |
| 39-4755 | 05506 | MARTIN SPROCKET AND GEAR INC |
| 0-474 | 05506 | MARTIN SPROCKET AND GEAR INC |
| 0116770000 | 84561 | PARKER-HANNIFIN CORPORATIONDBA CYLINDER DIV |
| 11677 | 45681 | PARKER-HANNIFIN CORPORATIONDIV CORPORATE HEADQUARTERS |
| JC497 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| C497 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| 0-474 | 65814 | TRW INCHAND TOOLS DIV |
Technical Data | NSN 5120-00-157-2133
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ADJUSTABLE PIN |
| OVERALL LENGTH | 11.375 INCHES NOMINAL |
| PIN DIAMETER | 0.250 INCHES NOMINAL |
| OPENING DIAMETER | 2.000 INCHES MINIMUM AND 4.750 INCHES MAXIMUM |
| SPECIAL FEATURES | 1/4 IN. PIN LG |
