NSN 5120-00-159-8181
Part Details | HAND HELICAL SPRING PULLER HOOK
5120-00-159-8181 A hook whose curved end conforms to Style AP10 of Reference Drawing Group AP.
Alternate Parts: 7550979, 5120-00-159-8181, 00-159-8181, 5120001598181, 001598181
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | OCT 18, 1971 | 00-159-8181 | 11148 ( HOOK, HELICAL SPRING PULLER, HAND ) |

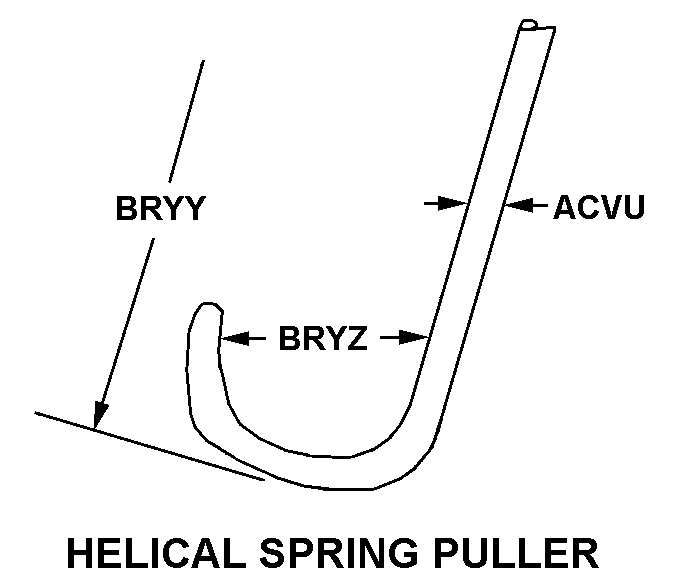

REFERENCE DRAWINGS & PICTURES
T
HELICAL SPRING PULLER
Cross Reference | NSN 5120-00-159-8181
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7550979 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 5120-00-159-8181
| Characteristic | Specifications |
|---|---|
| CURVED END STYLE | HELICAL SPRING PULLER |
| STOCK DIAMETER | 0.155 INCHES NOMINAL |
| LENGTH UNDER HANDLE | 12.500 INCHES NOMINAL |
| HANDLE STYLE | "T" |
