NSN 5120-00-168-4728
Part Details | SPANNER WRENCH
5120-00-168-4728 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: PWA1084, 5120-00-168-4728, 00-168-4728, 5120001684728, 001684728
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-168-4728 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

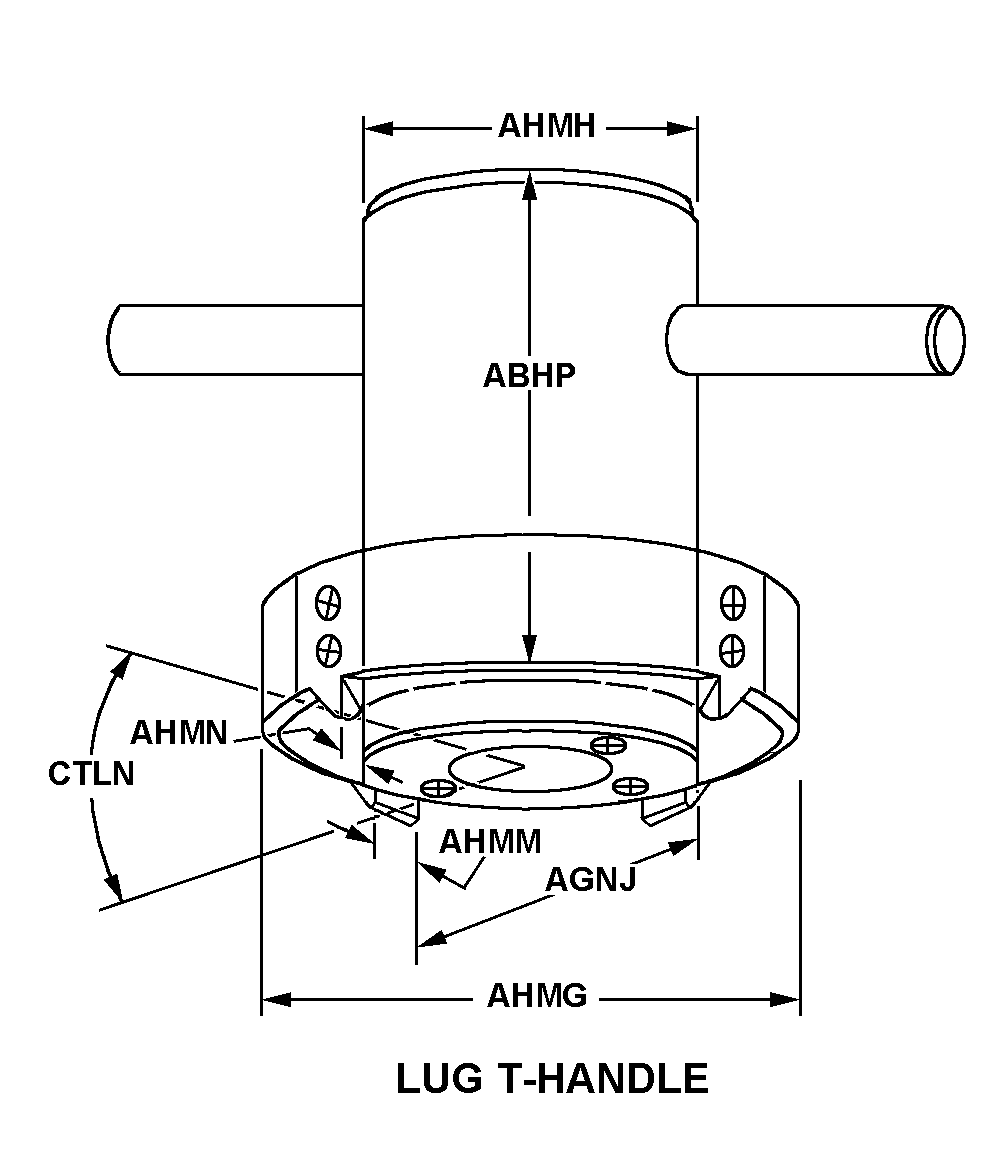

LUG T-HANDLE
Cross Reference | NSN 5120-00-168-4728
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA1084 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-168-4728
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LUG T-HANDLE |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| OPENING DIAMETER | 3.250 INCHES NOMINAL |
| LARGE END OUTSIDE DIAMETER | 5.437 INCHES MINIMUM AND 5.562 INCHES MAXIMUM |
| SMALL END OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |
| LUG WIDTH | 0.468 INCHES NOMINAL |
| LUG THICKNESS | 0.375 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 90.0 DEGREES NOMINAL |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
| SPECIAL MARKINGS | 0 TO 90 DEG IN MULTIPLES OF 1 DEG |
| SPECIAL FEATURES | HANDLE 16.750 IN. LG,0.625 IN. SQ.,ACCESSORY INCLUDES 1 NUT 2.562 IN LG2 13/16-12 NS THD |
