NSN 5120-00-169-8133
Part Details | SPANNER WRENCH
5120-00-169-8133 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: PWA5630, 5120-00-169-8133, 00-169-8133, 5120001698133, 001698133
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-169-8133 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

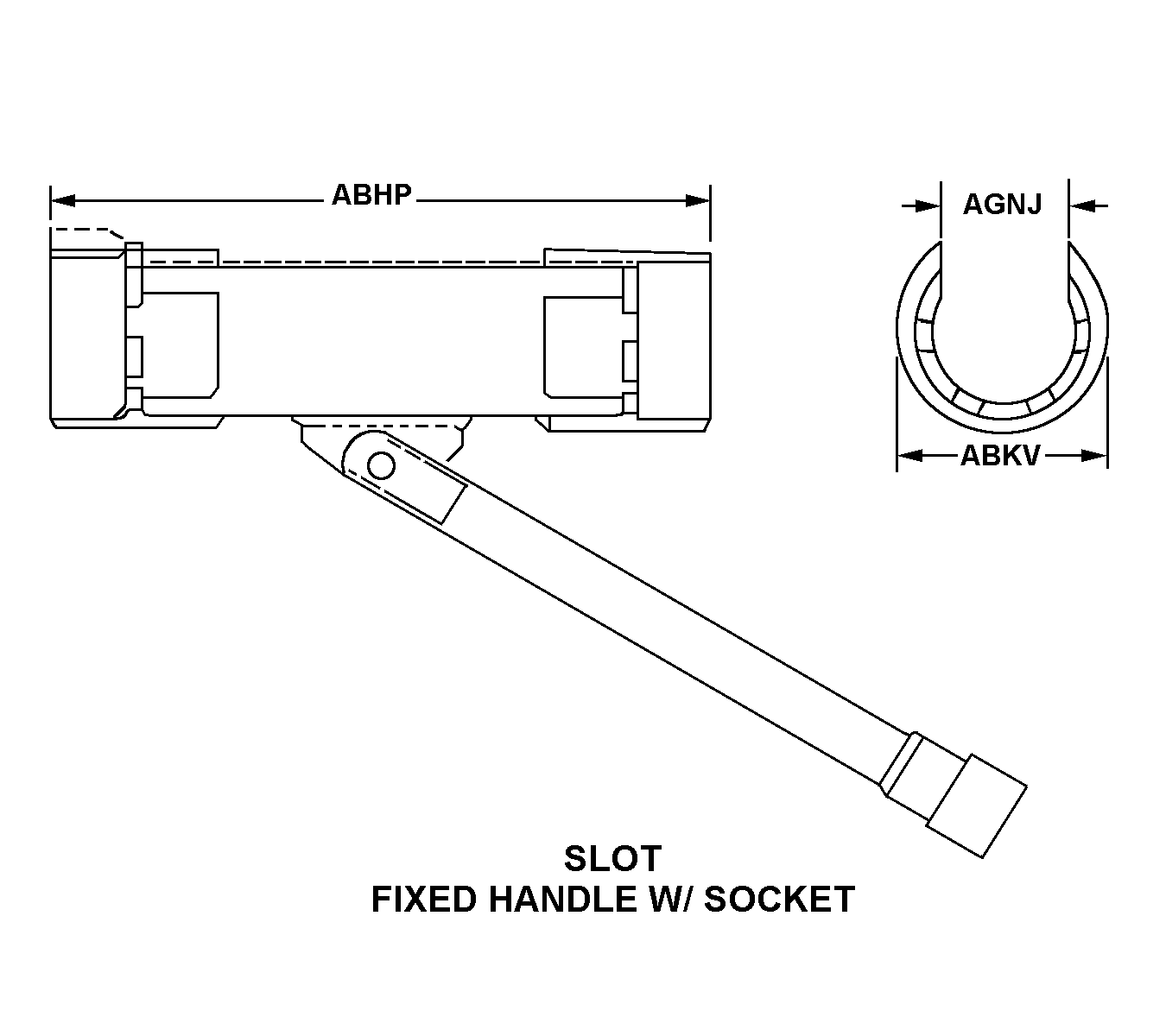

SLOT FIXED HANDLE W/SOCKET
Cross Reference | NSN 5120-00-169-8133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA5630 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5120-00-169-8133
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLOT FIXED HANDLE W/SOCKET |
| OVERALL LENGTH | 5.187 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |
| OPENING DIAMETER | 1.031 INCHES NOMINAL |
| FEATURES PROVIDED | REPLACEABLE WRENCHING FEATURE |
| SPECIAL FEATURES | 0/A LG OF HANDLE AND SOCKET 13.000 IN. |
