NSN 5120-00-177-6885
Part Details | SPANNER WRENCH
5120-00-177-6885 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: STD67084, 5120-00-177-6885, 00-177-6885, 5120001776885, 001776885
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | OCT 24, 1969 | 00-177-6885 | 03476 ( WRENCH, SPANNER ) |

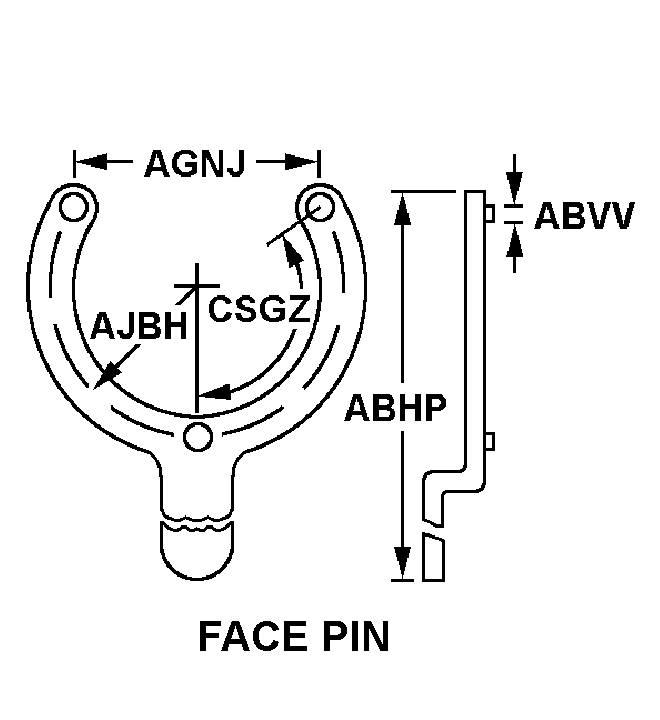

REFERENCE DRAWINGS & PICTURES
FACE PIN
Cross Reference | NSN 5120-00-177-6885
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| STD67084 | 11599 | TRIUMPH ENGINE CONTROL SYSTEMS, LLC |
Technical Data | NSN 5120-00-177-6885
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE PIN |
| OVERALL LENGTH | 7.312 INCHES NOMINAL |
| PIN DIAMETER | 0.124 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| OPENING DIAMETER | 1.791 INCHES NOMINAL |
| PIN CIRCLE RADIUS | 1.000 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| ANGLE BETWEEN PINS | 213.15 DEGREES MINIMUM AND 213.25 DEGREES MAXIMUM |
| SPECIAL FEATURES | STRAIGHT HANDLE;0.187 IN. FREE PIN LG |
