NSN 5120-00-177-6972
Part Details | SPANNER WRENCH
5120-00-177-6972 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: KGR364A, 5120-00-177-6972, 00-177-6972, 5120001776972, 001776972
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | MAR 04, 1970 | 00-177-6972 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

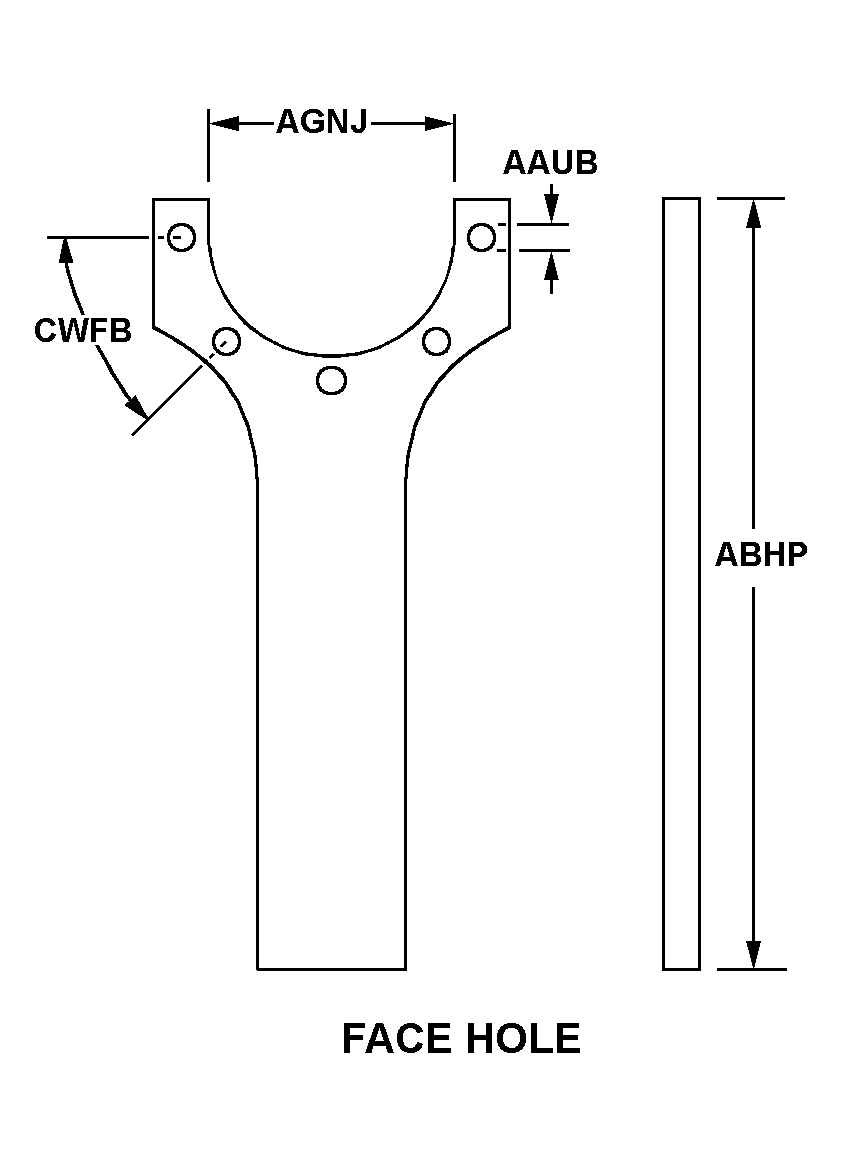

FACE HOLE
Cross Reference | NSN 5120-00-177-6972
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KGR364A | 16712 | SIEMENS DEMAG DELAVALTURBOMACHINERY, INC. |
Technical Data | NSN 5120-00-177-6972
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE HOLE |
| HOLE DIAMETER | 1.031 INCHES NOMINAL |
| OVERALL LENGTH | 16.500 INCHES NOMINAL |
| OPENING DIAMETER | 9.250 INCHES NOMINAL |
| ANGLE BETWEEN HOLES | 180.0 DEGREES NOMINAL |
| SPECIAL FEATURES | 11.500 IN. CENTER TO CENTER OF HOLES;ADDITIONAL 1.062 IN. DIA HOLE LOCATED ON DRIVE HOLE PITCH CIRCLE 90 DEG BETWEEN HOLES |
