NSN 5120-00-177-7281
Part Details | TORQUE SCREWDRIVER
5120-00-177-7281 A manual tool for tightening vairous fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets, screwdriver bits, and other types of wrenching adapters. Torque value may be manually set and adjusted by user of may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is spun in-line with axis of fastener rotation to apply torque. For items with handles that are swung at right angle to axis of fastener rotation to apply torque, see WRENCH, TORQUE.
Alternate Parts: B107.300, B107.14, B100, 5684749, 568-4749, B107.14 TY3CLBST1, 5120-00-177-7281, 00-177-7281, 5120001777281, 001777281
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 15, 1972 | 00-177-7281 | 67439 ( SCREWDRIVER, TORQUE ) |
REFERENCE DRAWINGS & PICTURES

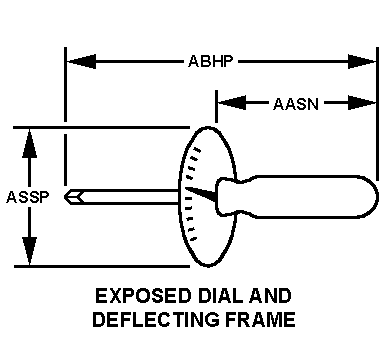

EXPOSED DIAL AND DEFLECTING FRAME
Cross Reference | NSN 5120-00-177-7281
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B107.300 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B107.14 | 05047 | AMERICAN SOCIETY OF MECHANICALENGINEERS, THE |
| B100 | 03683 | APCO MOSSBERG CO |
| 568-4749 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| B107.14 TY3CLBST1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5120-00-177-7281
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | EXPOSED DIAL AND DEFLECTING FRAME |
| OVERALL LENGTH | 10.500 INCHES NOMINAL |
| TORQUE CAPACITY | 0.0 INCH-POUNDS MINIMUM AND 100.0 INCH-POUNDS MAXIMUM |
| TORQUE INDICATING MECHANISM | DIAL |
| TORQUE SCALE GRADUATION | 4.00 INCH-POUNDS |
| FURNISHED ITEMS | NO. 3 PHILLIPS BIT, FLAT TIP BIT AND 1/4 IN. MALE SQUARE ADAPTER |
| SPECIAL FEATURES | T-HANDLE TYPE |
| SPECIFICATION/STANDARD DATA | 05047-ASME B107.300 TO B107.14 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND B CLASS AND 1 STYLE |
