NSN 5120-00-184-8578
Part Details | OPEN END WRENCH
5120-00-184-8578 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: AN850545, AN8505-45, AA1351, A-A-1351, GGGW636, GGG-W-636, GGGW636 TY15, GGG-W-636 TY15, TE8578, 5120-00-184-8578, 00-184-8578, 5120001848578, 001848578
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-184-8578 | 17182 ( WRENCH, OPEN END ) |
REFERENCE DRAWINGS & PICTURES

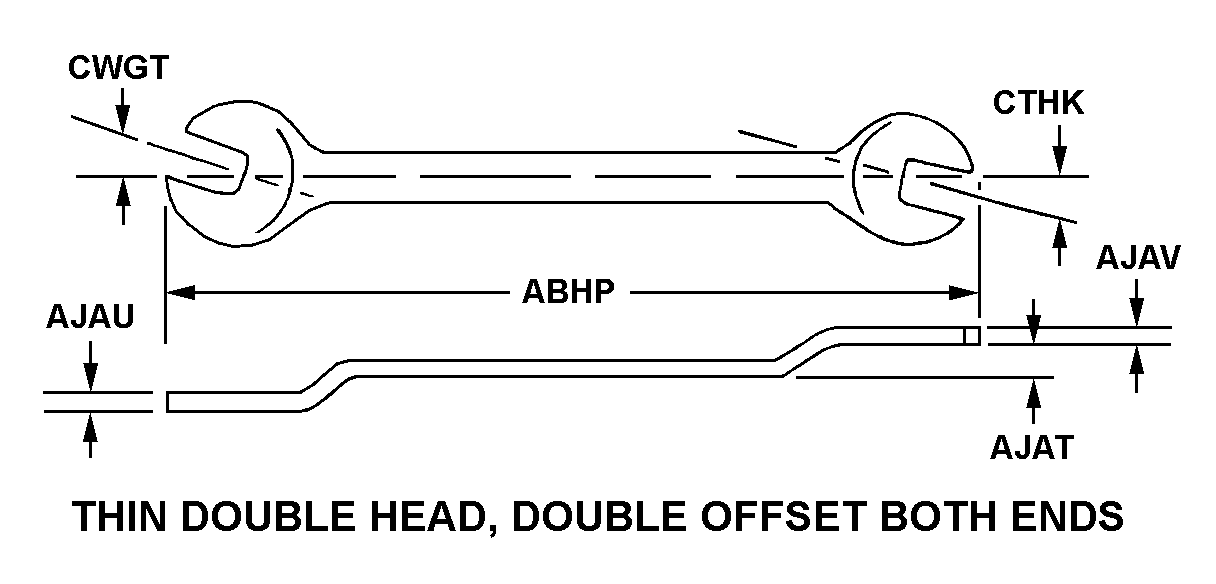

THIN DOUBLE HEAD, DOUBLE OFFSET BOTH ENDS
Cross Reference | NSN 5120-00-184-8578
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN8505-45 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| A-A-1351 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-W-636 TY15 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| TE8578 | 0FKL0 | TIMBER EDGE MACHINE INC |
Technical Data | NSN 5120-00-184-8578
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THIN DOUBLE HEAD, DOUBLE OFFSET BOTH ENDS |
| OVERALL LENGTH | 16.000 INCHES NOMINAL |
| OFFSET HEIGHT | 0.188 INCHES NOMINAL |
| LARGE END HEAD THICKNESS | 0.375 INCHES NOMINAL |
| SMALL END HEAD THICKNESS | 0.375 INCHES NOMINAL |
| SMALL END HEAD ANGLE | 15.0 DEGREES NOMINAL |
| LARGE END HEAD ANGLE | 15.0 DEGREES NOMINAL |
